14 / 17 / 19 / 22 Narrow Sliding Door Locks
CNC-machined aluminium sliding door lock series with 14, 17, 19 and 22 mm nominal opening options. Suitable for left- and right-hand installation, with black, silver and gray colour options and brushed finishes. A keyed option is available for Model 17.
This narrow sliding door lock series includes Models 14, 17, 19 and 22 for different aluminium profile opening requirements. All four models are non-handed and suitable for left- and right-hand installation. They are compatible with single-point locking fittings and transmission rods.
The components are manufactured from 6063 aluminium alloy extrusion using precision CNC machining, with an anodized surface finish. Black, silver and gray colours are available, with brushed black, brushed silver and brushed gray finish options. Use an actual finish sample for colour matching.

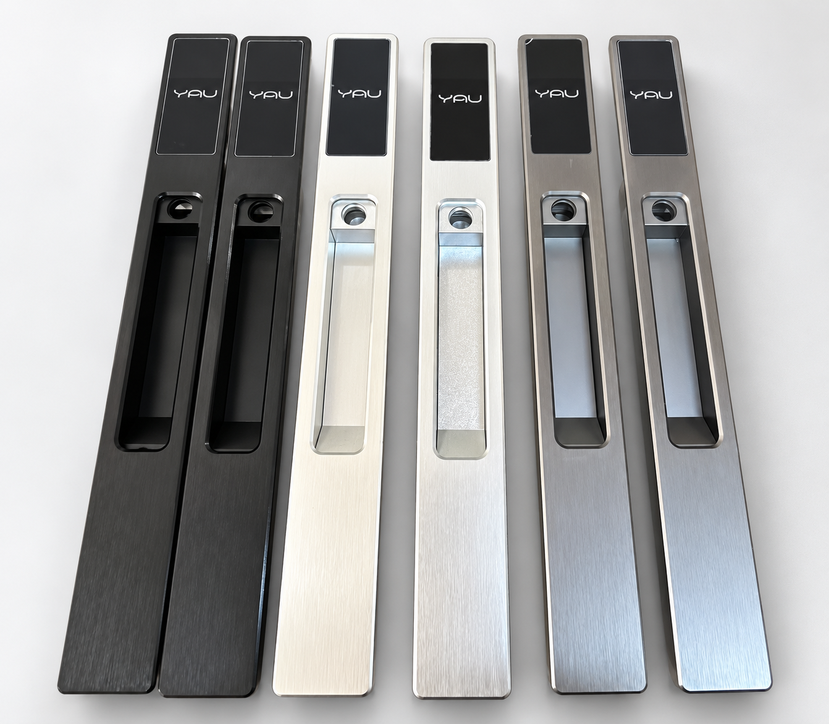

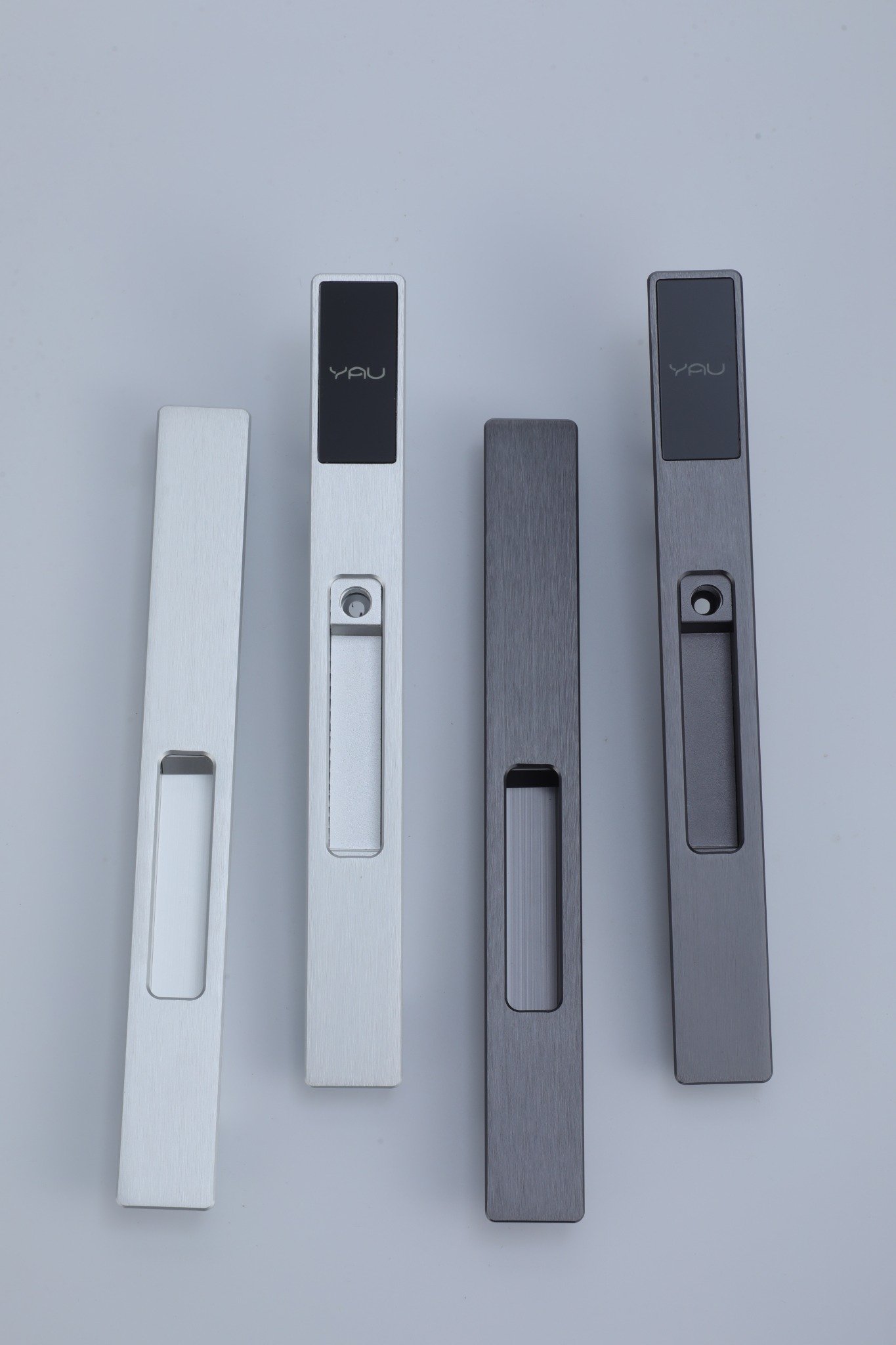

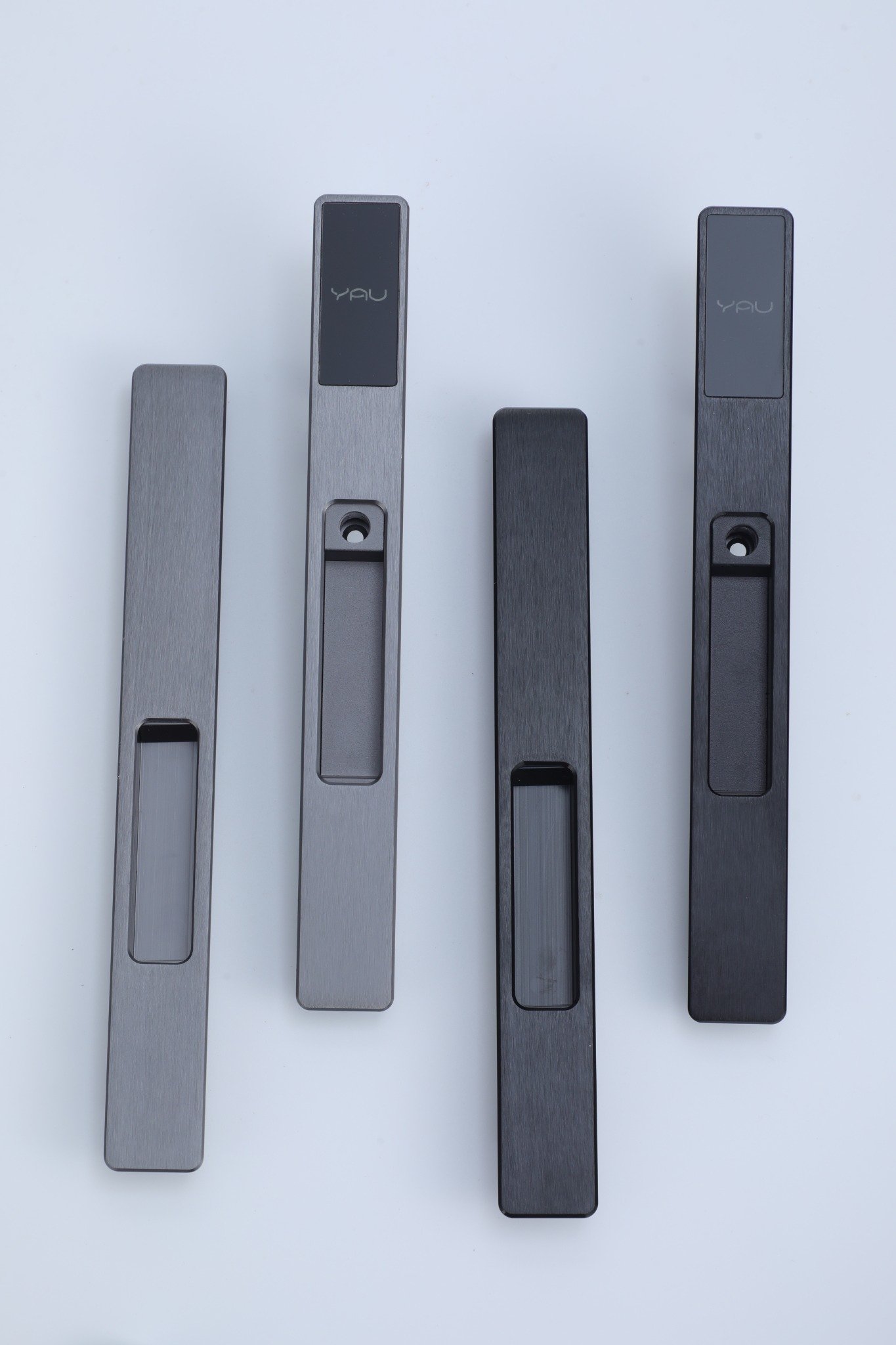

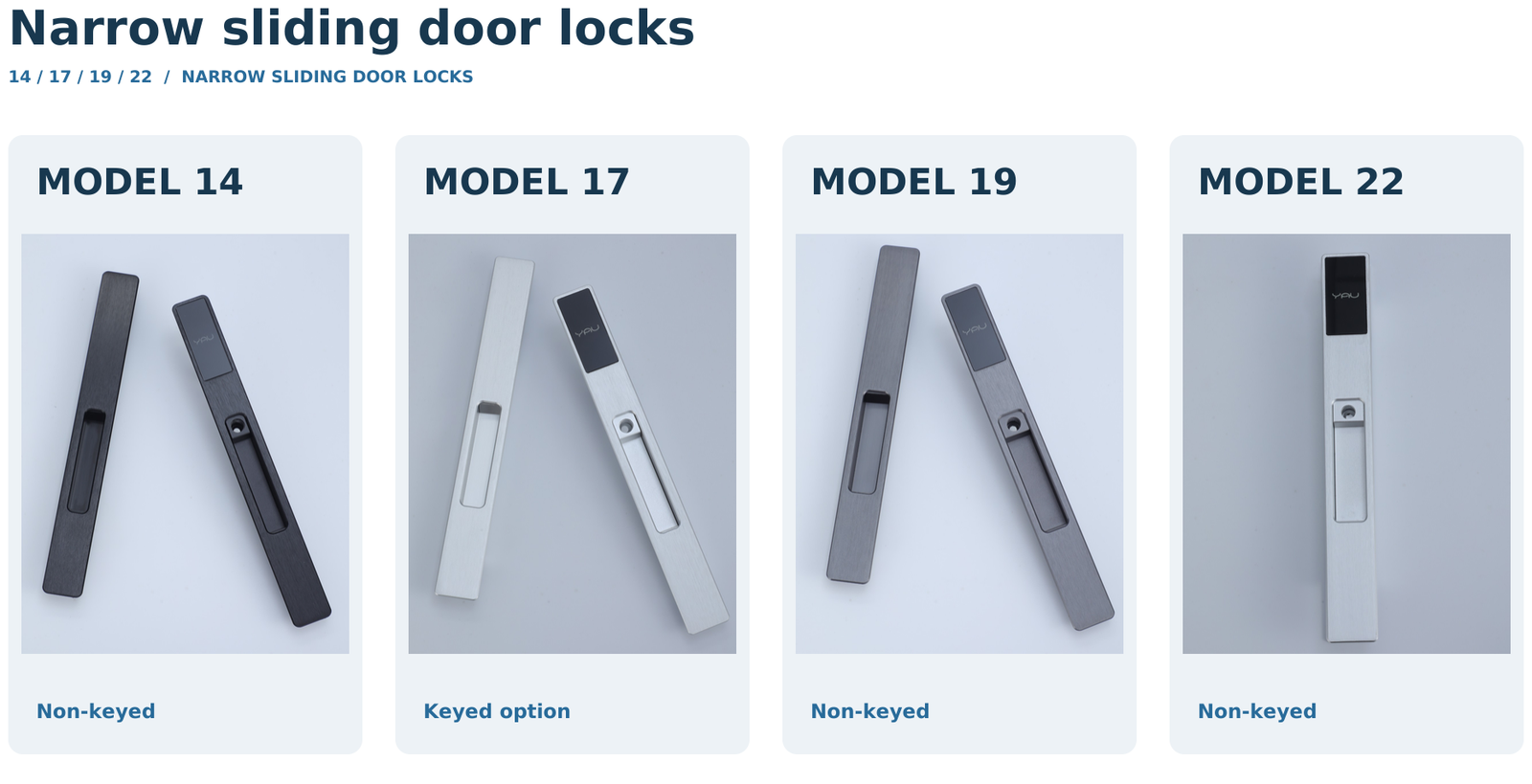

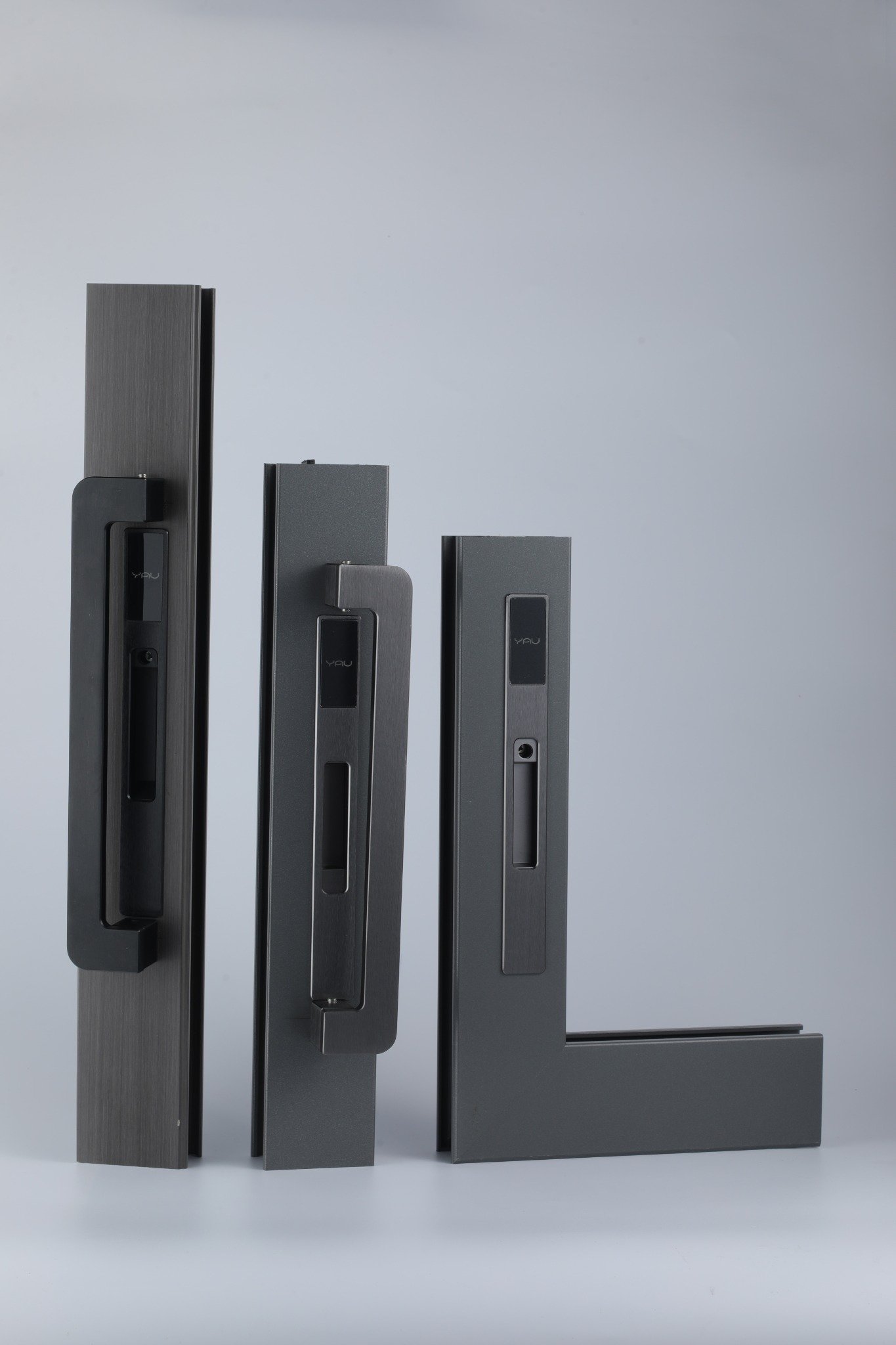

A keyed option is available for Model 17. Models 14, 19 and 22 are non-keyed. The product photos show series appearance and profile sample installations.

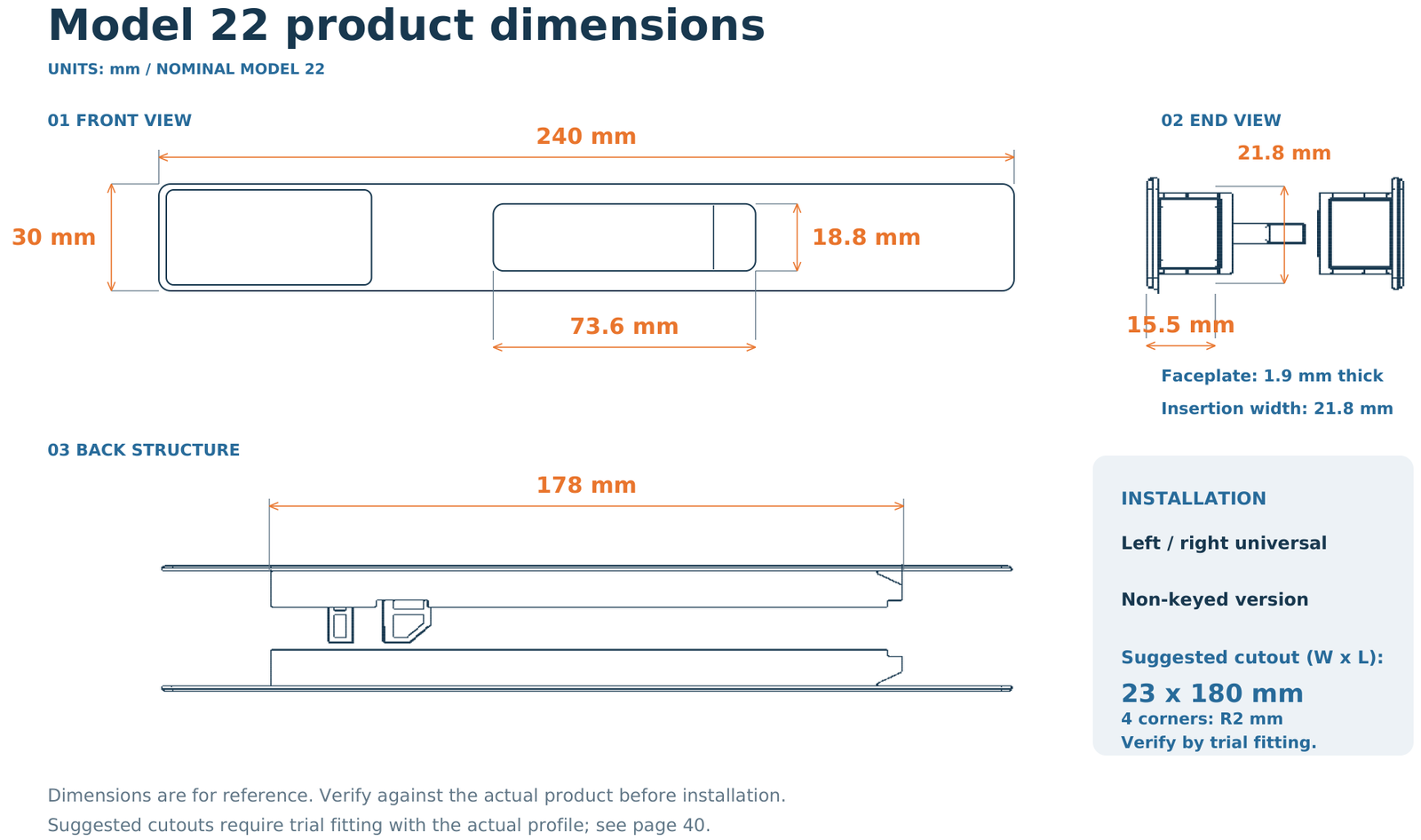

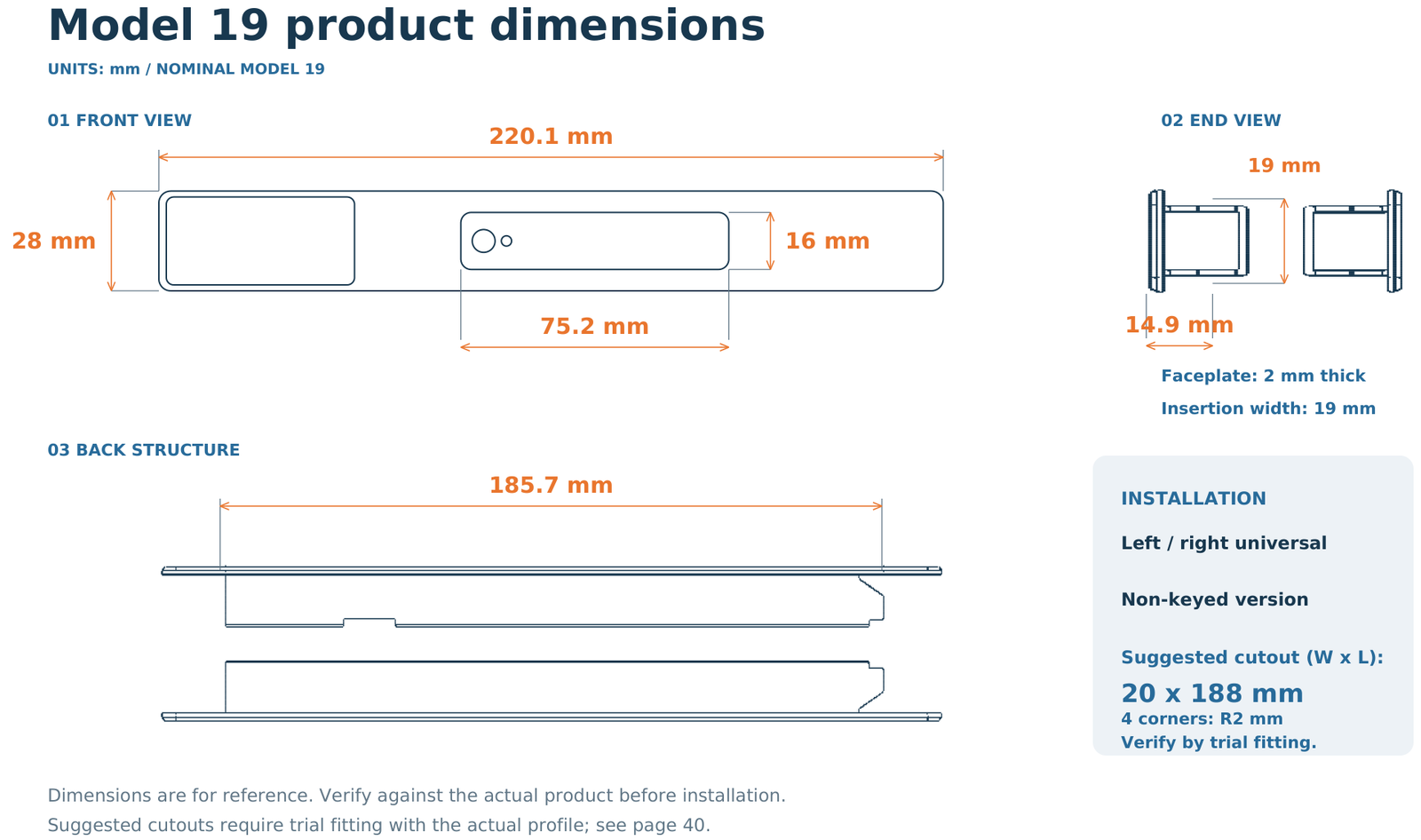

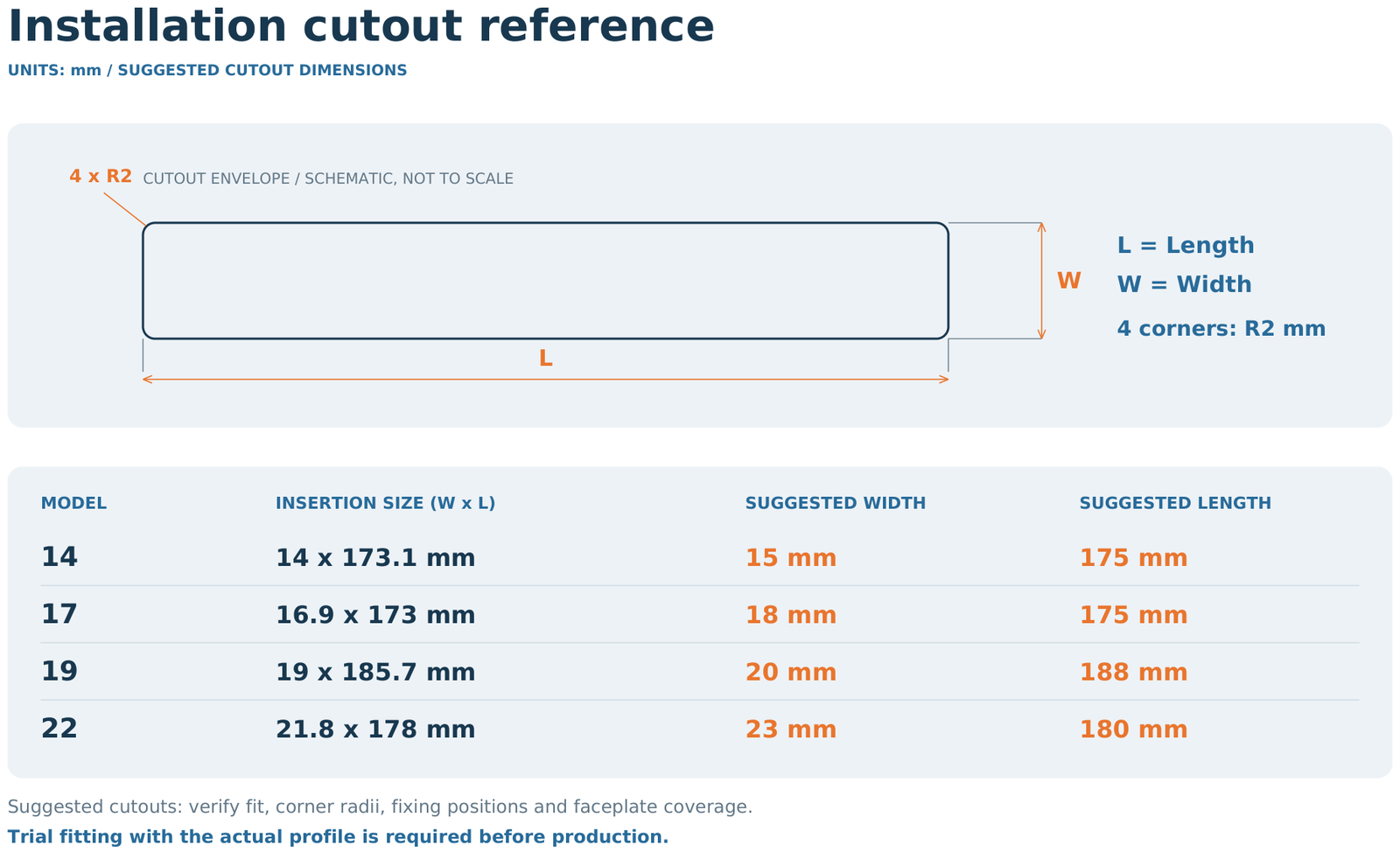

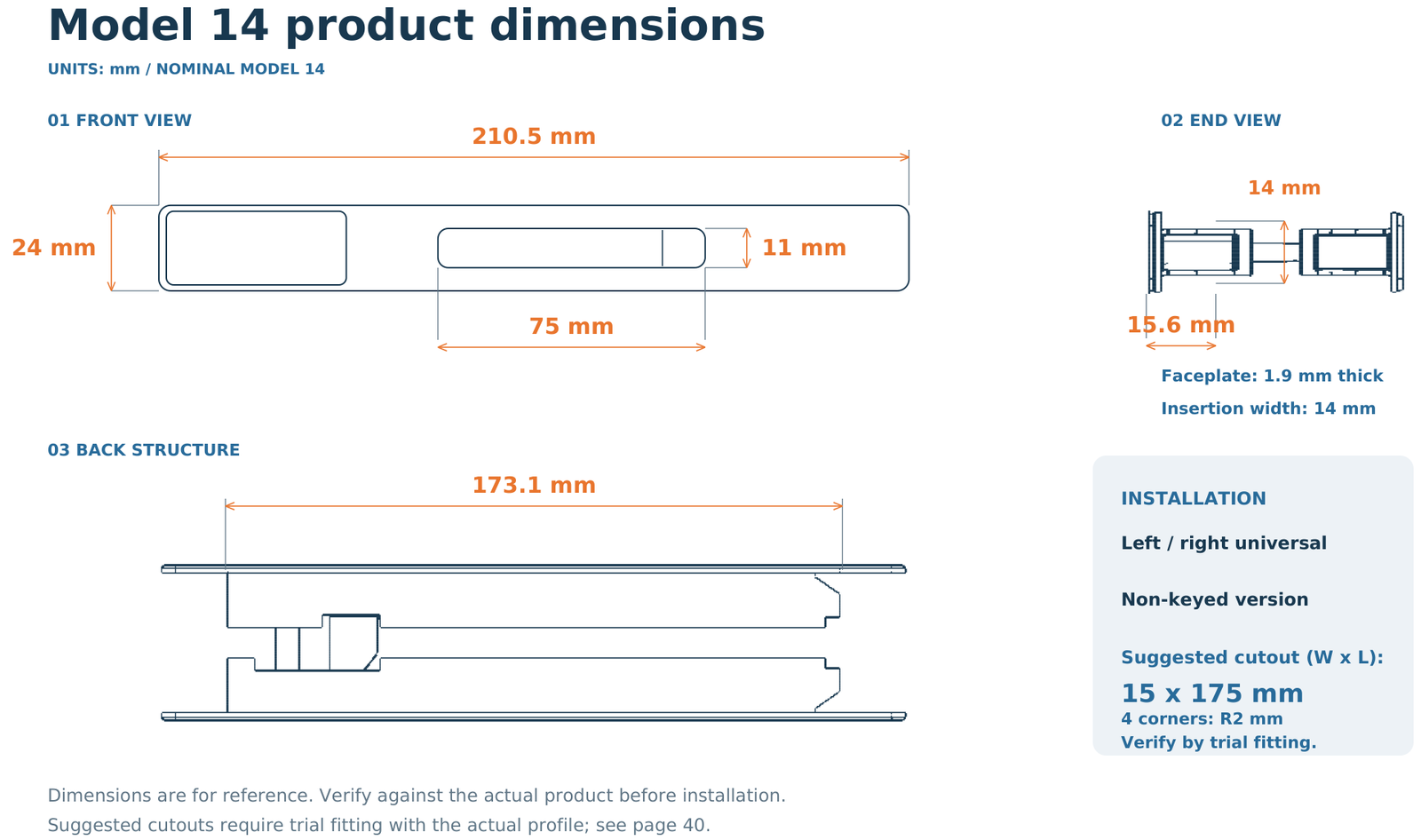

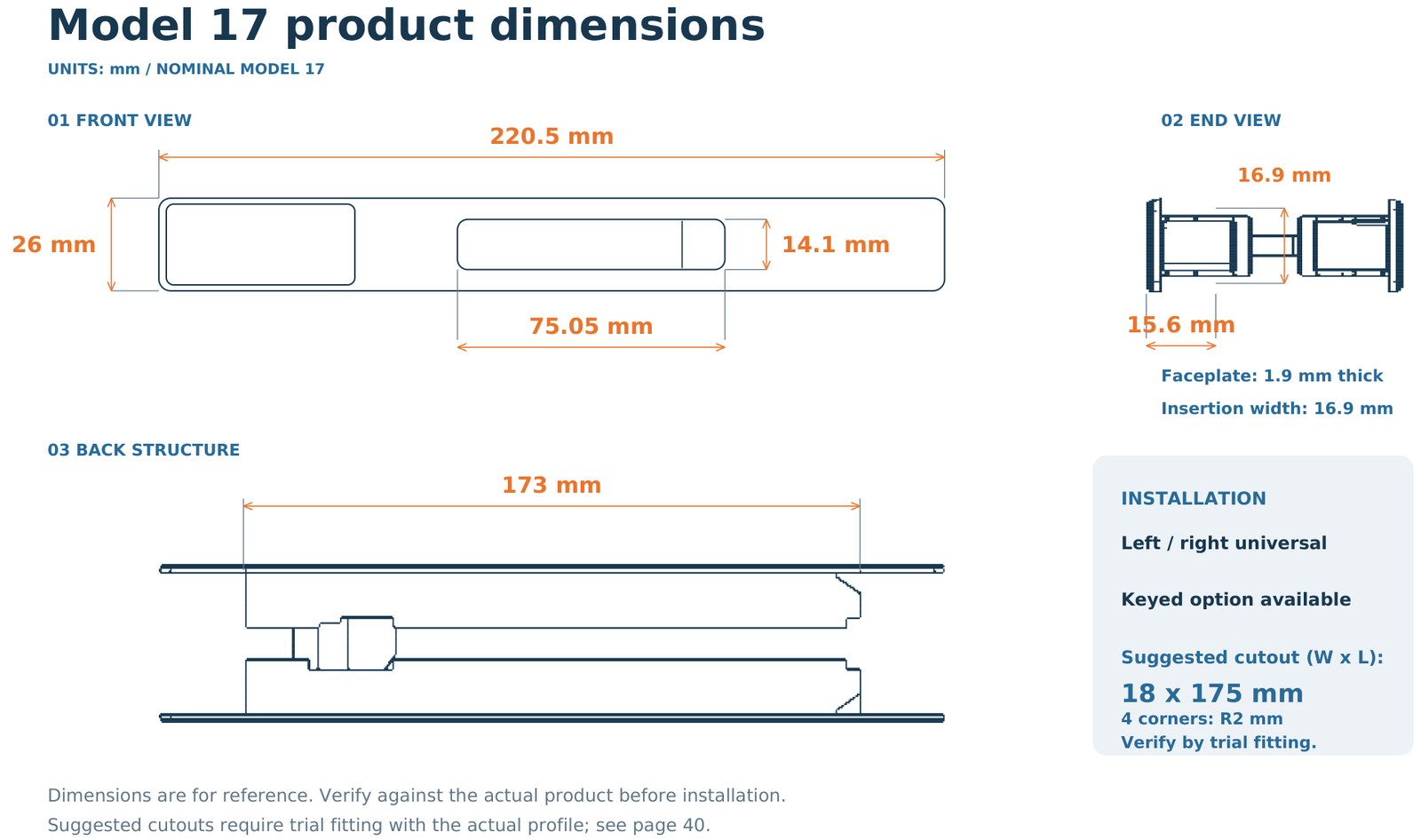

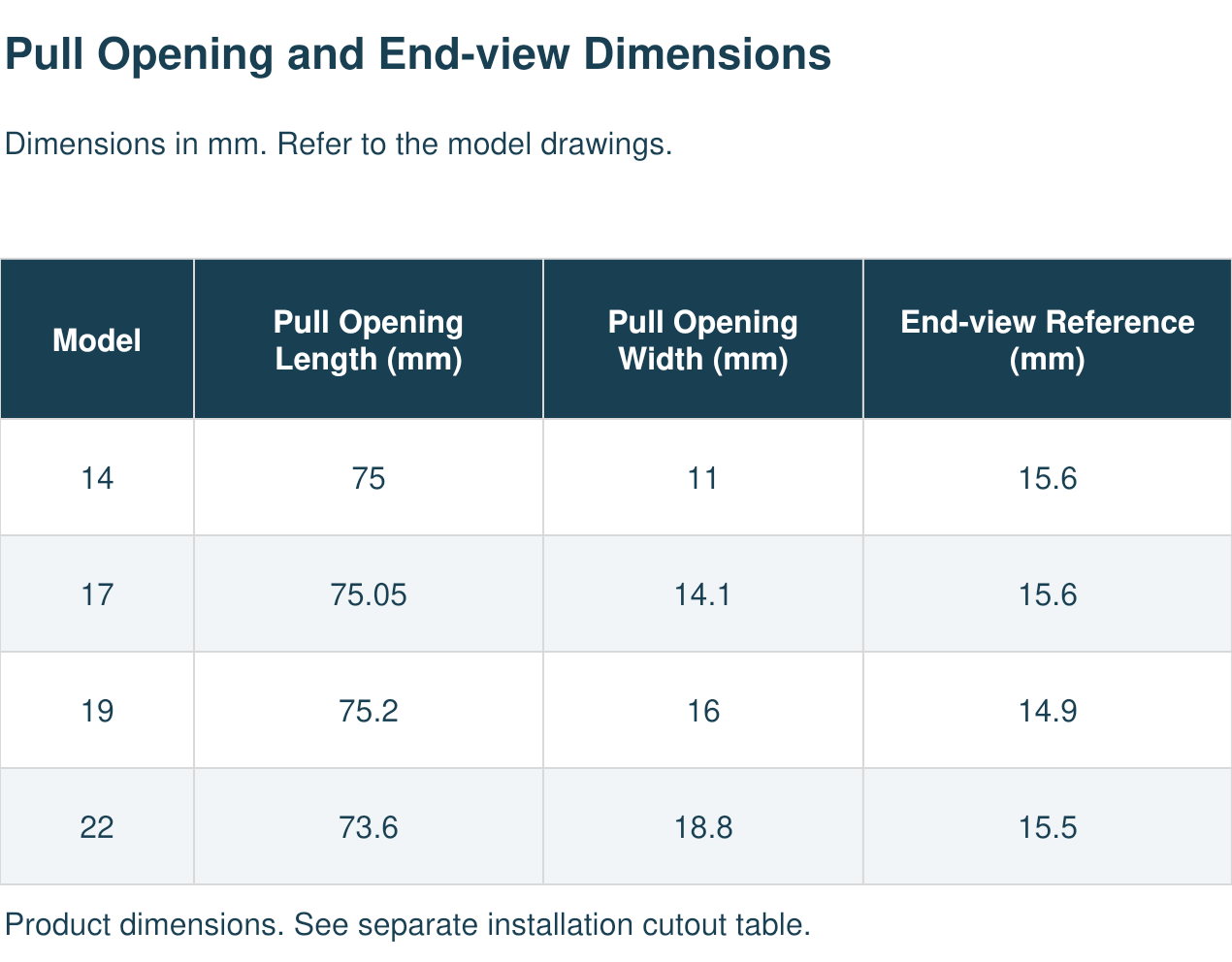

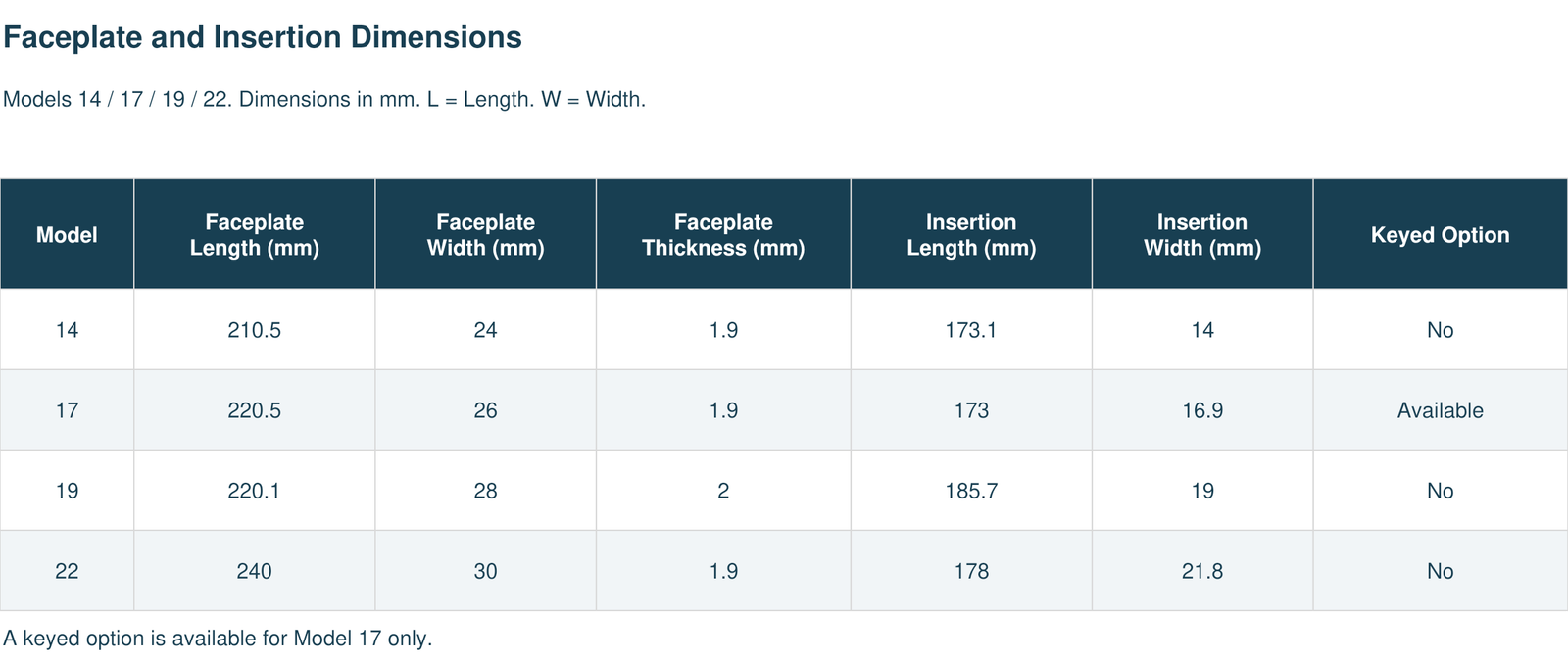

Select the model to suit the actual profile and locking fittings. Refer to the model dimension drawings and suggested installation cutouts below. Trial fitting with the actual profile is required before production to check fit, corner radii, fixing positions and faceplate coverage.
| Models | 14 / 17 / 19 / 22 |
|---|---|
| Application | Aluminium sliding doors |
| Installation Direction | Non-handed; left- and right-hand installation |
| Compatible Fittings | Single-point locking fittings and transmission rods |
| Keyed Option | Available for Model 17 only. Models 14, 19 and 22 are non-keyed. |
| Colour Options | Black / Silver / Gray |
| Brushed Finish Options | Brushed Black / Brushed Silver / Brushed Gray |

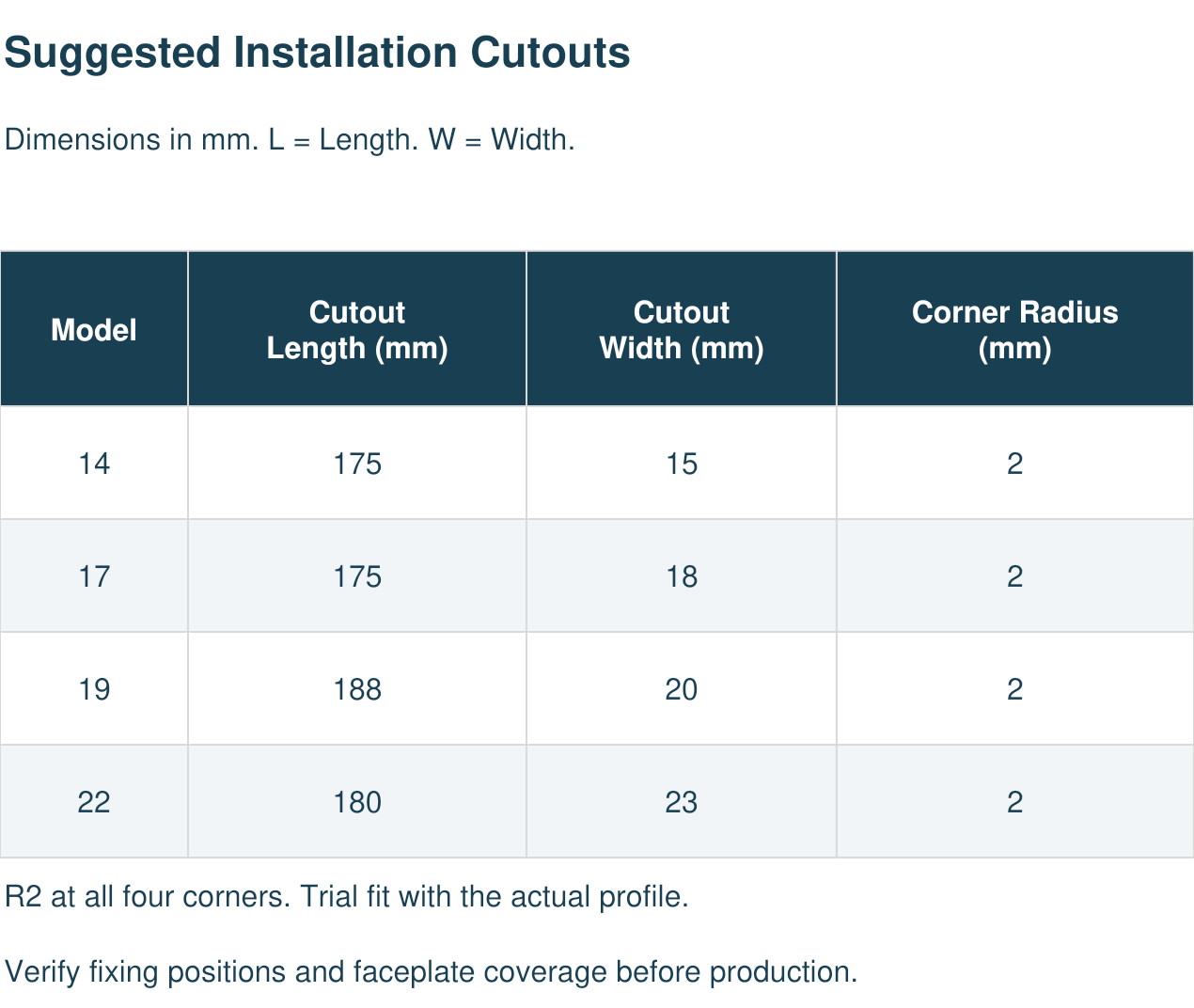

| Cutout Corners | R2 mm at all four corners |
| Installation Check | Trial fitting with the actual profile is required before production. |
| Material | 6063 aluminium alloy extrusion |
|---|---|
| Manufacturing Process | Precision CNC machining |
| Surface Finish | Anodized finish |
| Minimum Order Quantity | 300 locks per model. Mixed colours are accepted within the same model. |
| Bulk Order Lead Time | 15–20 days. |
| Samples | Free samples are available. Shipping costs are paid by the customer. |
| OEM / ODM | Custom colours, laser logo, packaging and profile compatibility support. Contact us to discuss your requirements. |
