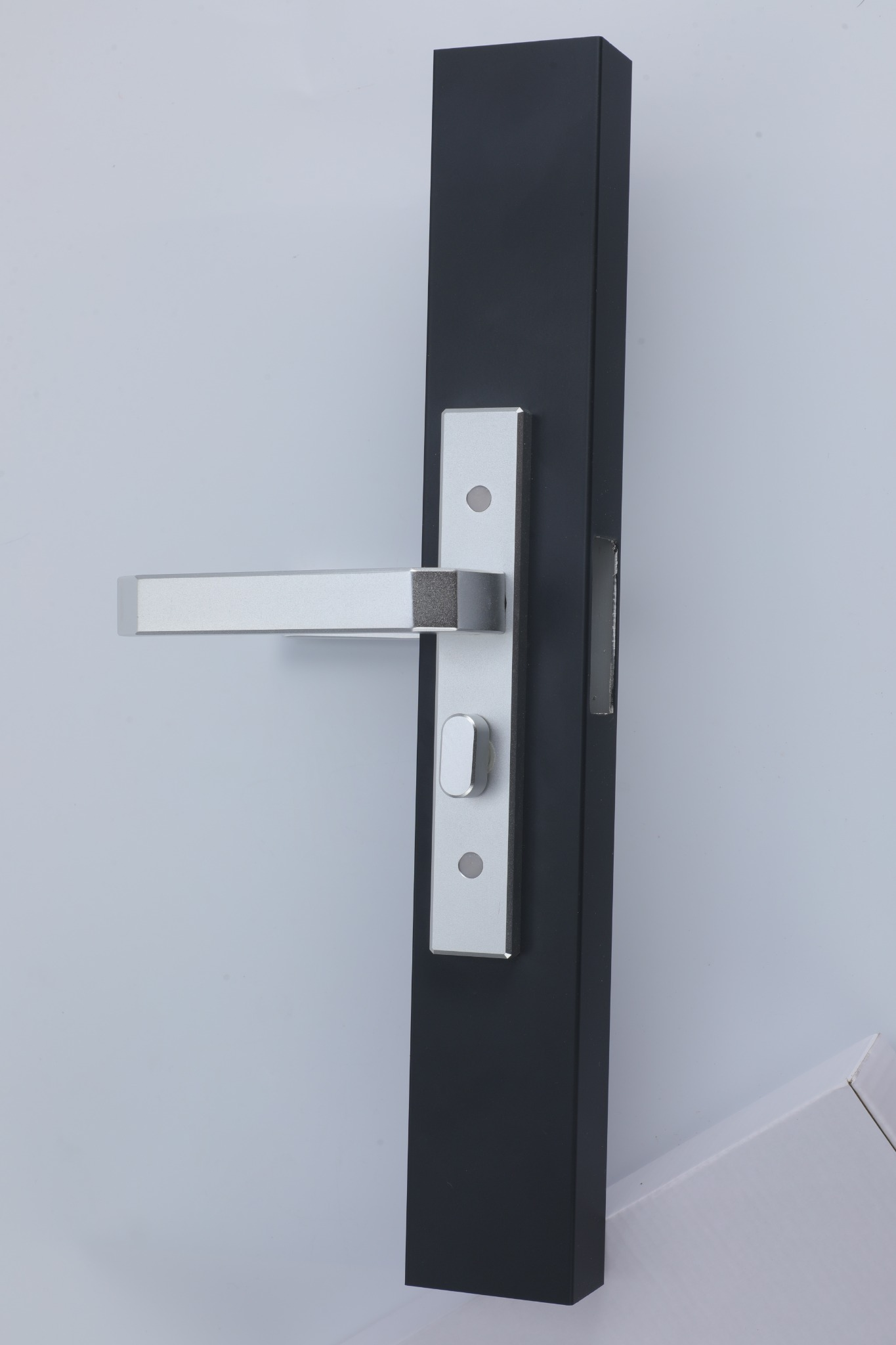

601 Medium-Narrow Swing Door Lock
CNC-machined aluminium door lock for medium-narrow framed swing doors. Non-handed installation, keyed or non-keyed options, and multiple cylinder sizes for matching your door profile.
Made from solid aluminum alloy, the handle and escutcheon are integrally formed through CNC precision machining, delivering a strong structure, refined details and a premium anodized finish with modern architectural aesthetics.
The medium-narrow profile with a clean and streamlined design is ideal for modern swing door applications in residential, hotels, offices, apartments and commercial spaces.
Features
✔ Solid Aluminum Alloy Construction
✔ Integrated CNC Precision Machining
✔ Anodized Surface Finish
✔ Modern Minimalist Design
✔ Suitable for Medium-Narrow Swing Doors
OEM/ODM customization and bulk orders are available.
Solid Aluminum Alloy · CNC Precision Machining · Anodized Finish · Medium-Narrow Design
| Application | Medium-narrow framed swing doors |
|---|---|

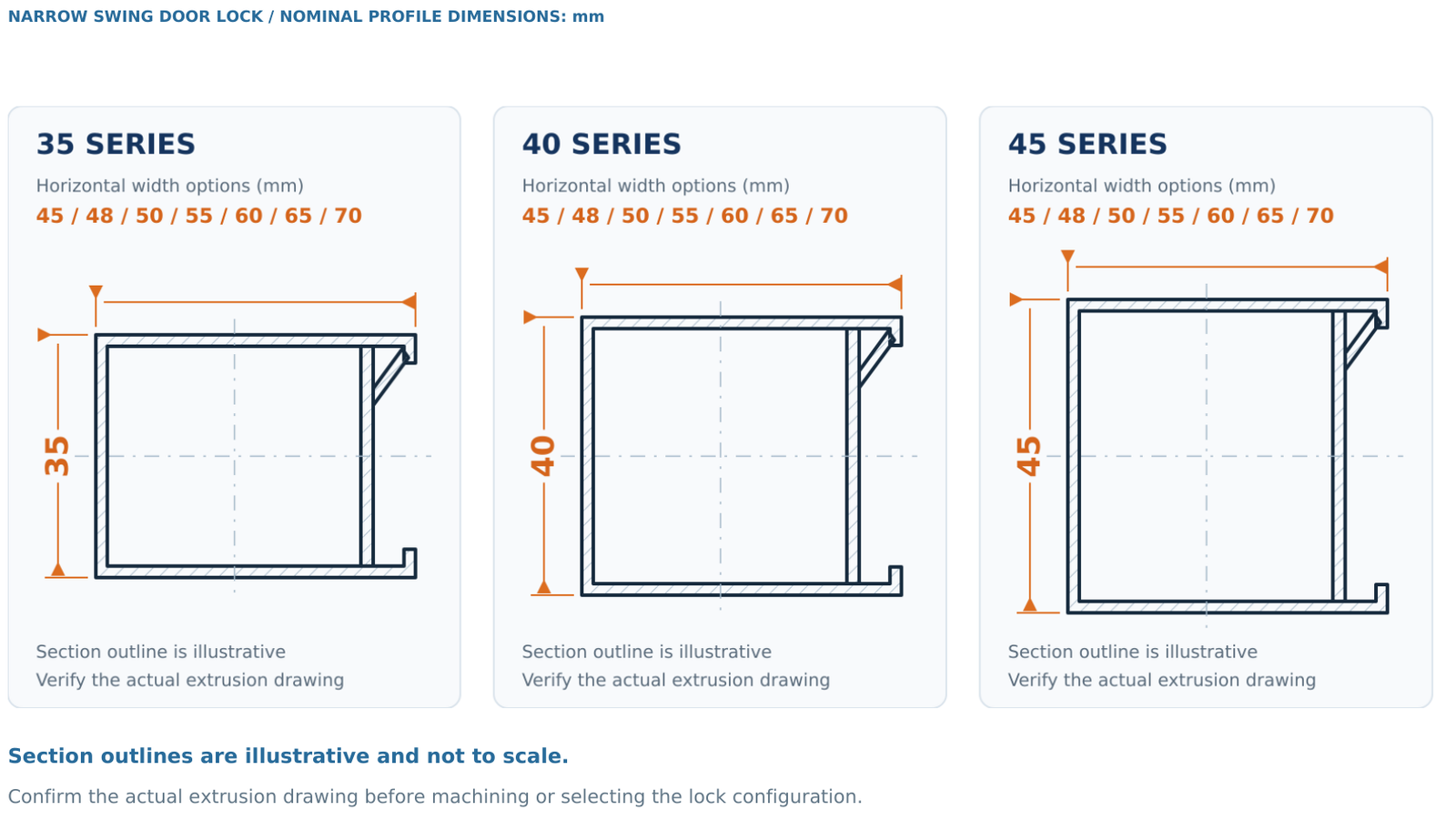

| Profile Compatibility | 35 / 40 / 45 mm vertical profile series; horizontal widths: 45 / 48 / 50 / 55 / 60 / 65 / 70 mm. Confirm the actual extrusion drawing before selecting the lock configuration. |

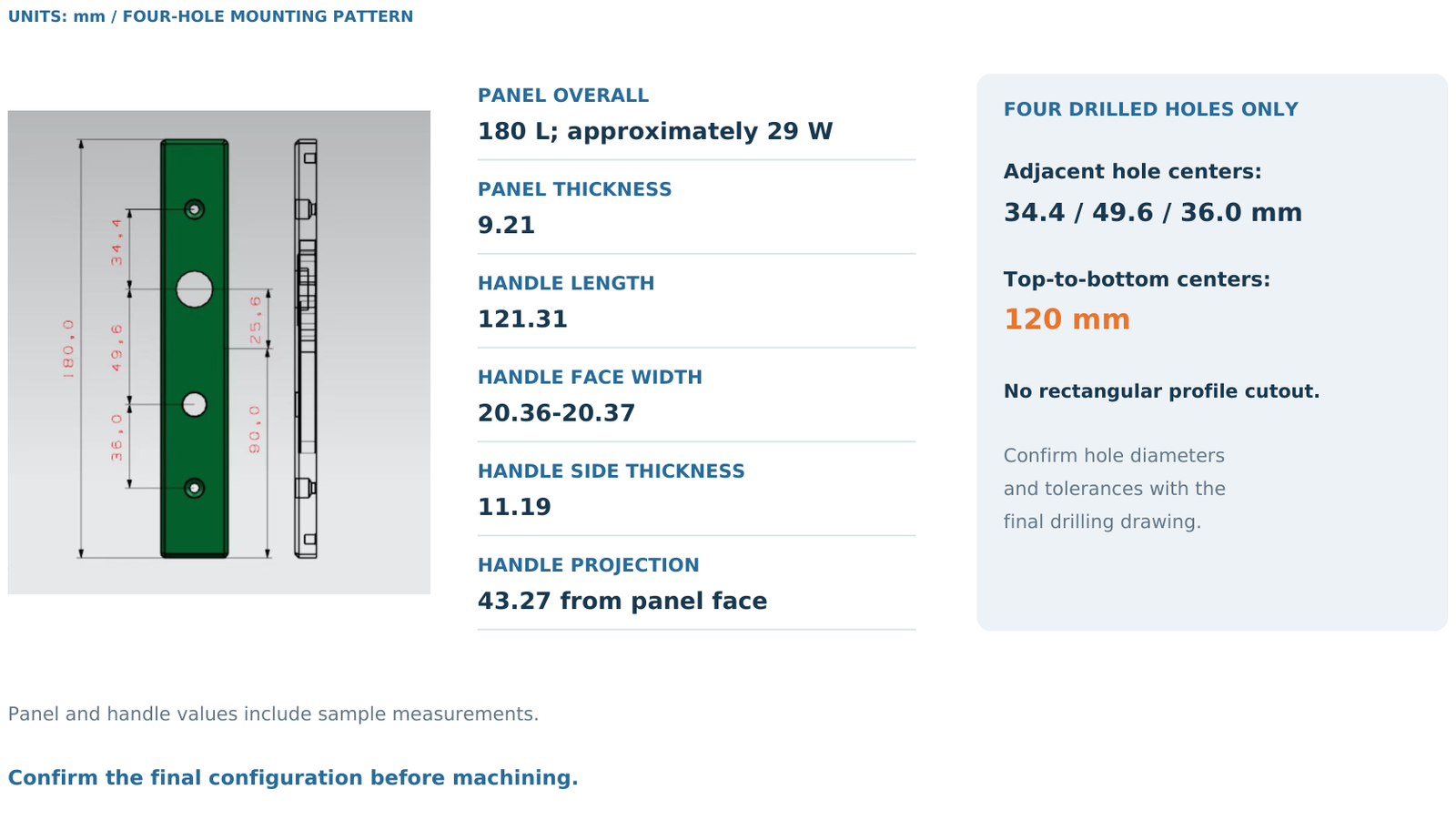

| Panel Dimensions | 180 mm long; approximately 29 mm wide; 9.21 mm thick |
| Handle Dimensions | Length: 121.31 mm; face width: 20.36–20.37 mm; side thickness: 11.19 mm |
| Handle Projection | 43.27 mm from the panel face |
| Lock Cylinder Options | 22 / 25 / 30 / 35 / 40 mm |
| Key Option | With key / without key |
| Handing | Non-handed: left / right |

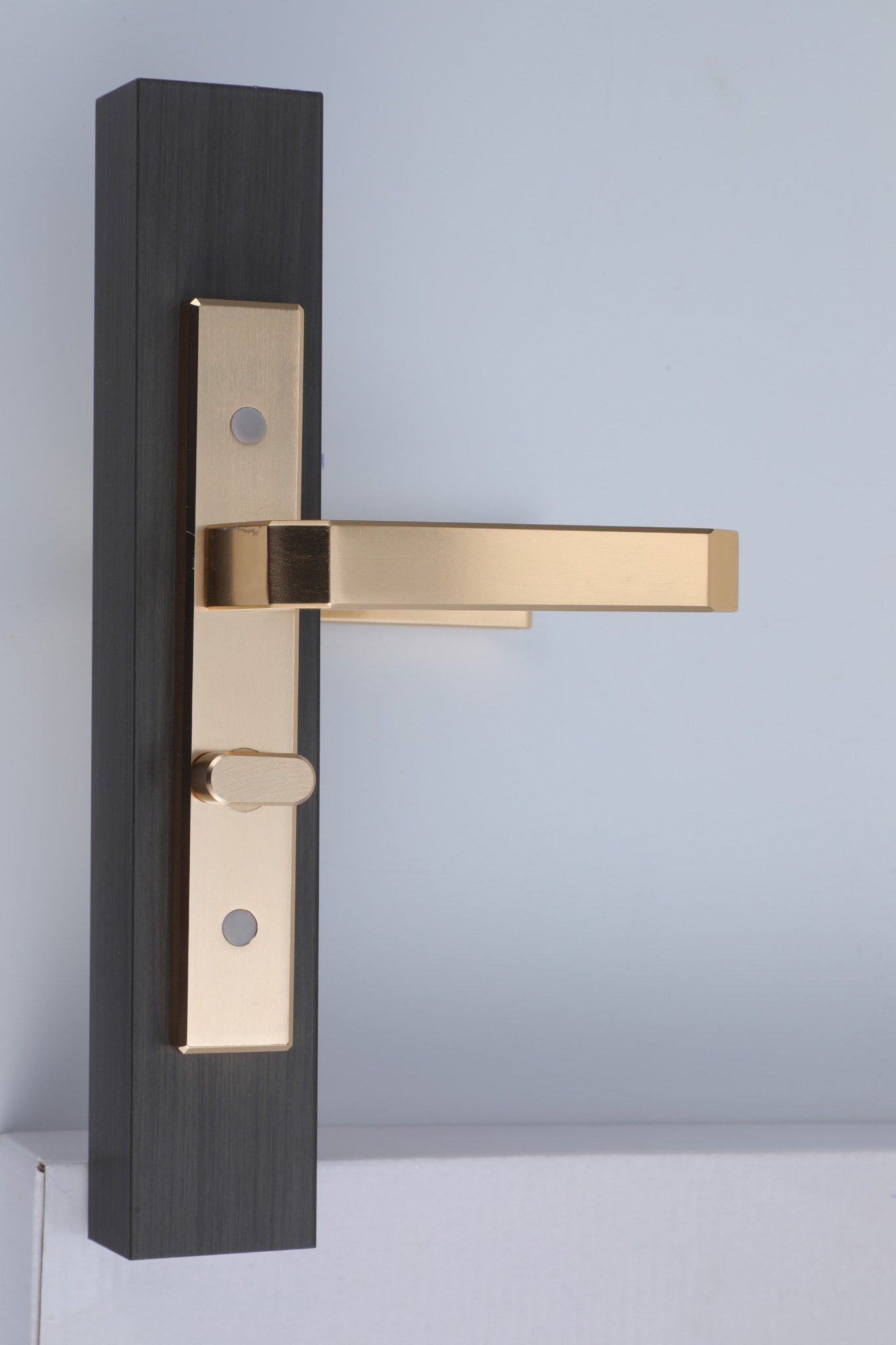

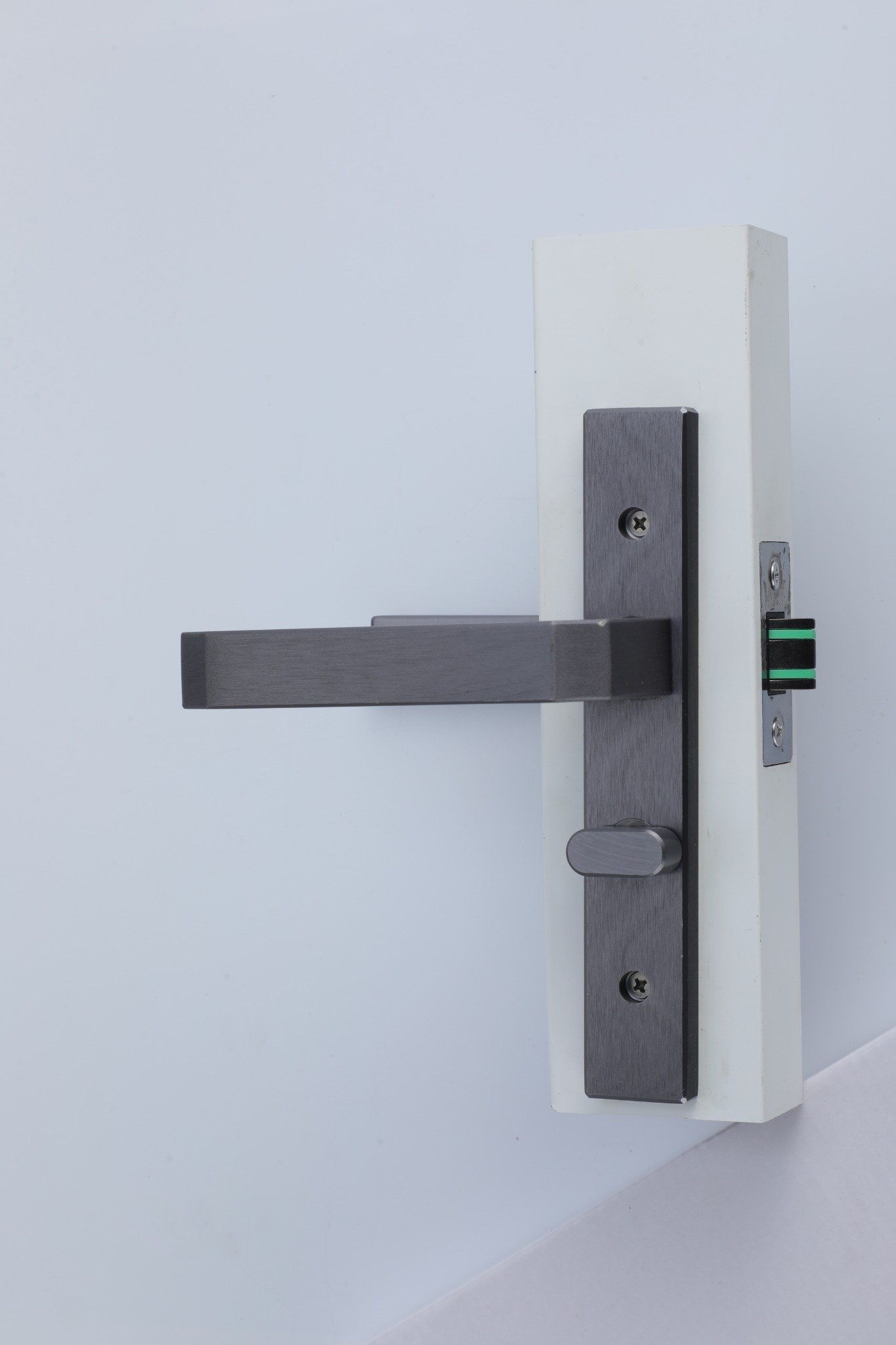

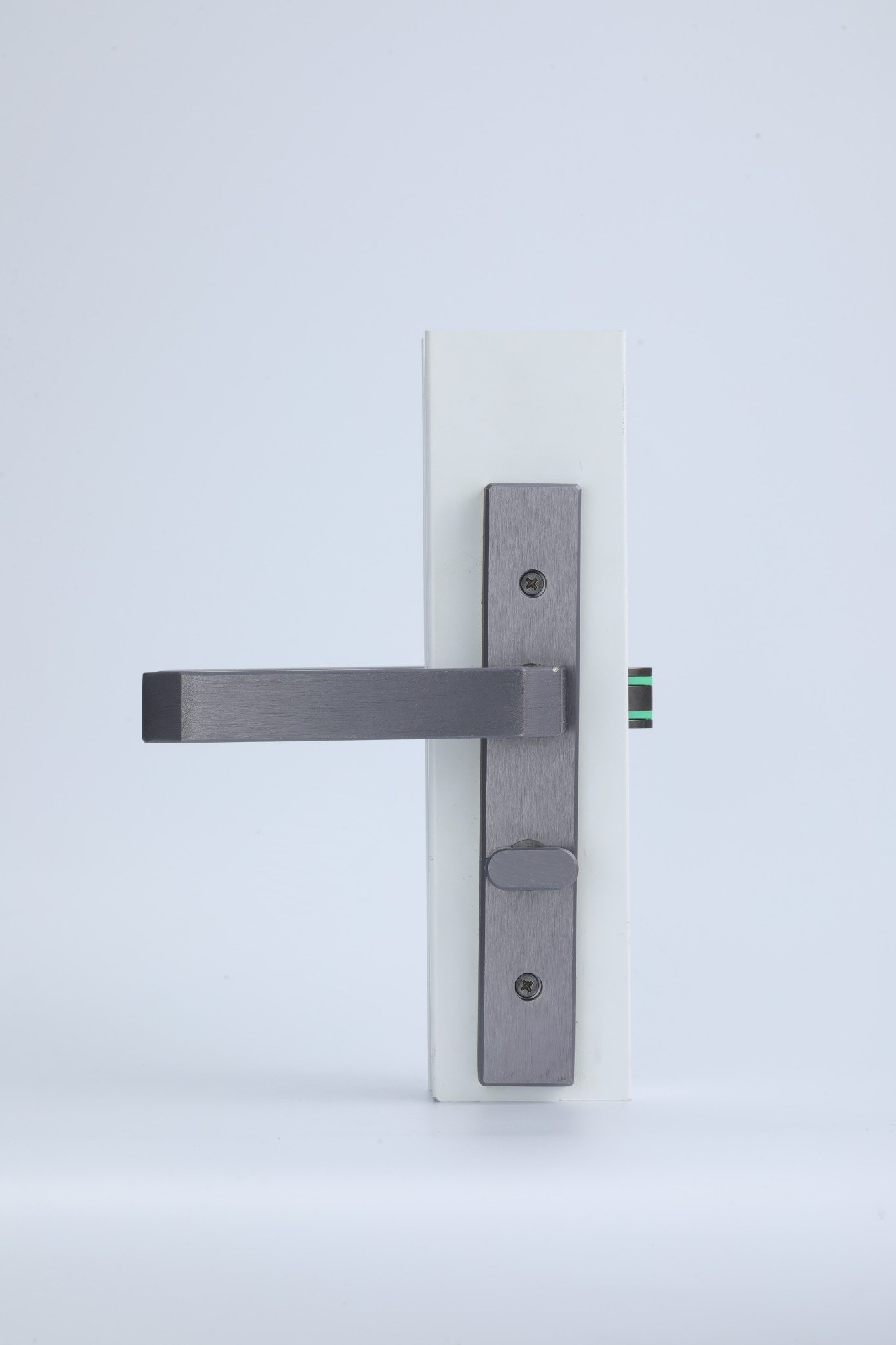

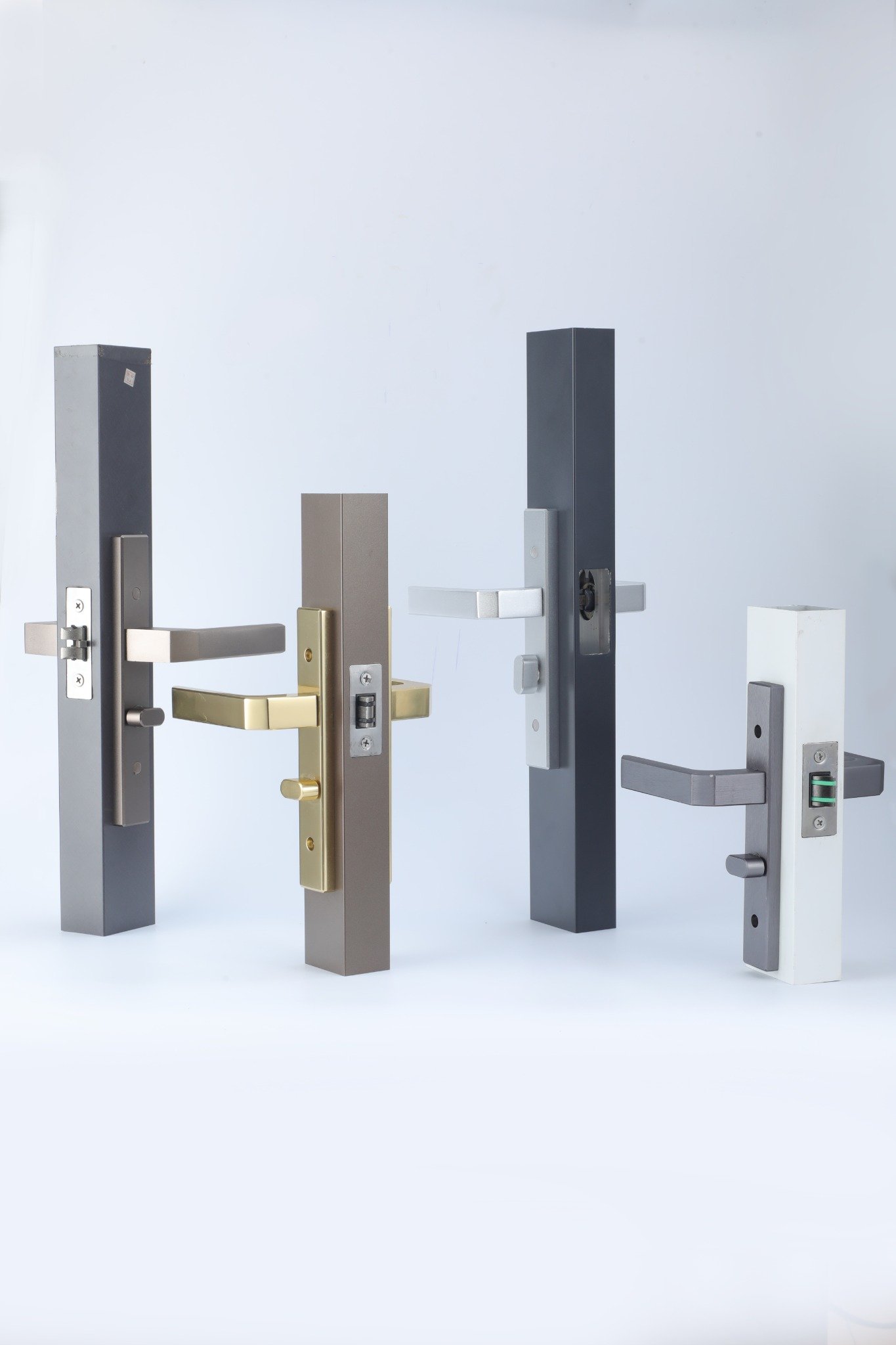

| Colour Options | Black / Silver / Gray / Brushed Gray / Gold; custom colours available. |
| Mounting Pattern | Four drilled holes only. Adjacent centres: 34.4 / 49.6 / 36.0 mm. |
| Material | 6063 aluminium alloy extrusion |
|---|---|
| Manufacturing Process | Precision CNC machining |
| Surface Finish | Anodized finish |
| Minimum Order Quantity | 300 locks per model. Mixed colours are accepted within the same model. |
| Bulk Order Lead Time | 15–20 days. |
| Samples | Free samples are available. Shipping costs are paid by the customer. |
| OEM / ODM | Custom colours, laser logo, packaging and profile compatibility support. Contact us to discuss your requirements. |
