C01 Ultra-Narrow Sliding Door Lock
CNC-machined aluminium sliding door lock for ultra-narrow single-glazed door profiles. Compatible with 35 / 40 / 45 profile series and 10–18 mm profile specifications using matching middle connectors. Supplied with a standard non-keyed lock body; left- and right-hand versions are available.

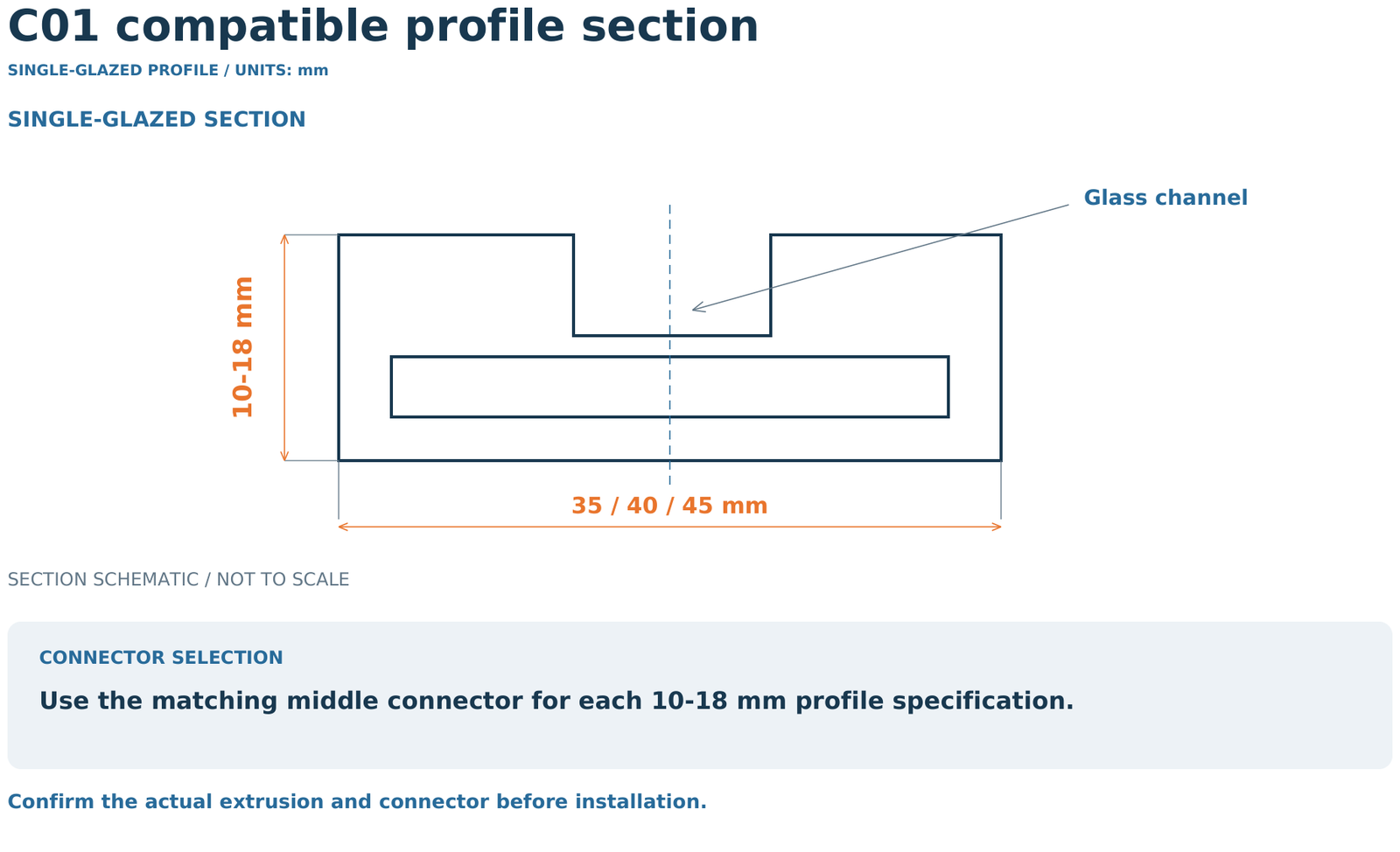

C01 is an ultra-narrow sliding door lock designed for single-glazed aluminium door profiles. It is compatible with 35 / 40 / 45 profile series and 10–18 mm profile specifications. Select the matching middle connector to suit the actual extrusion.

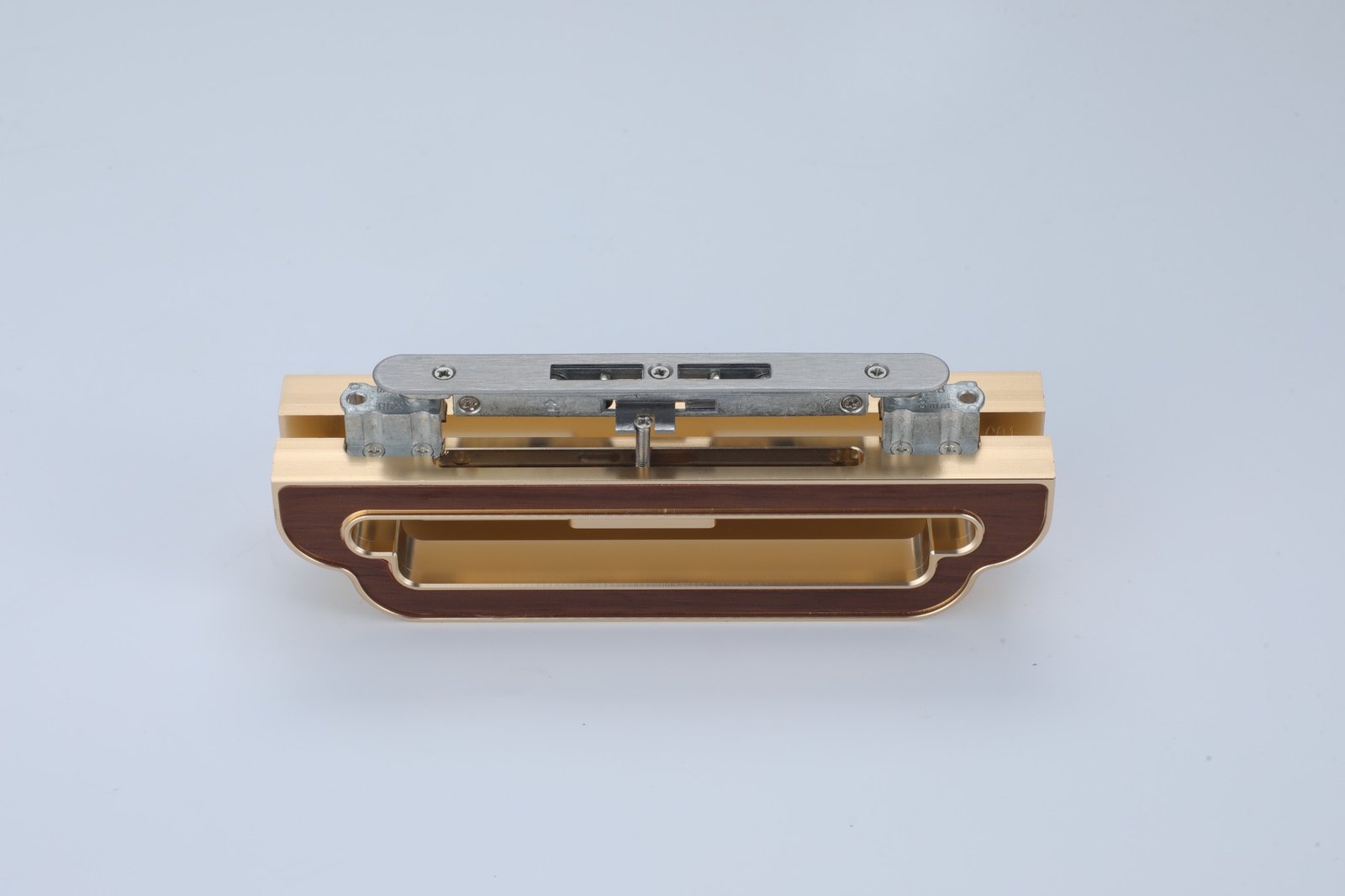

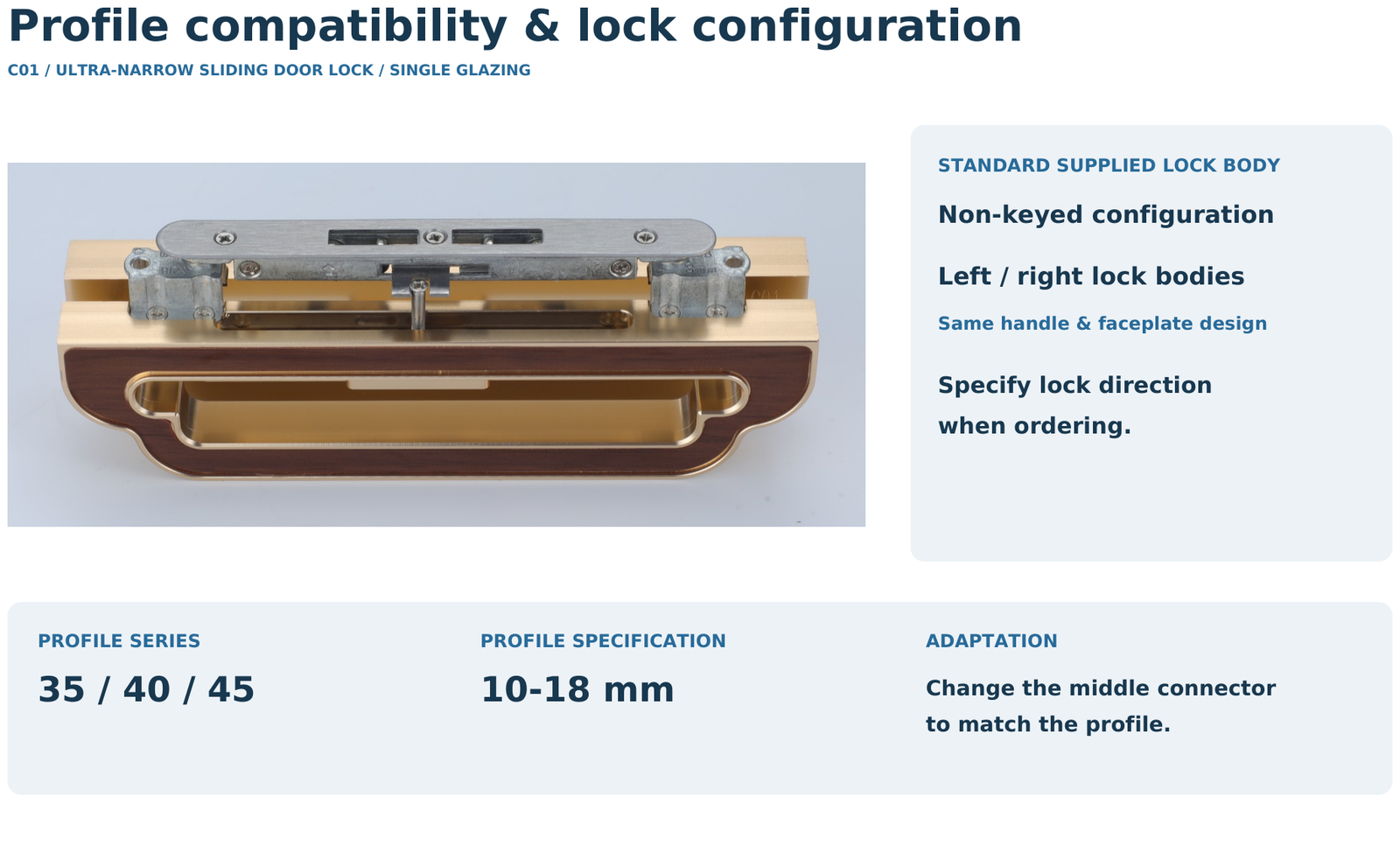

C01 is supplied with a standard non-keyed lock body. Left- and right-hand lock body versions are available with the same handle and faceplate design. Specify the required lock direction when ordering.

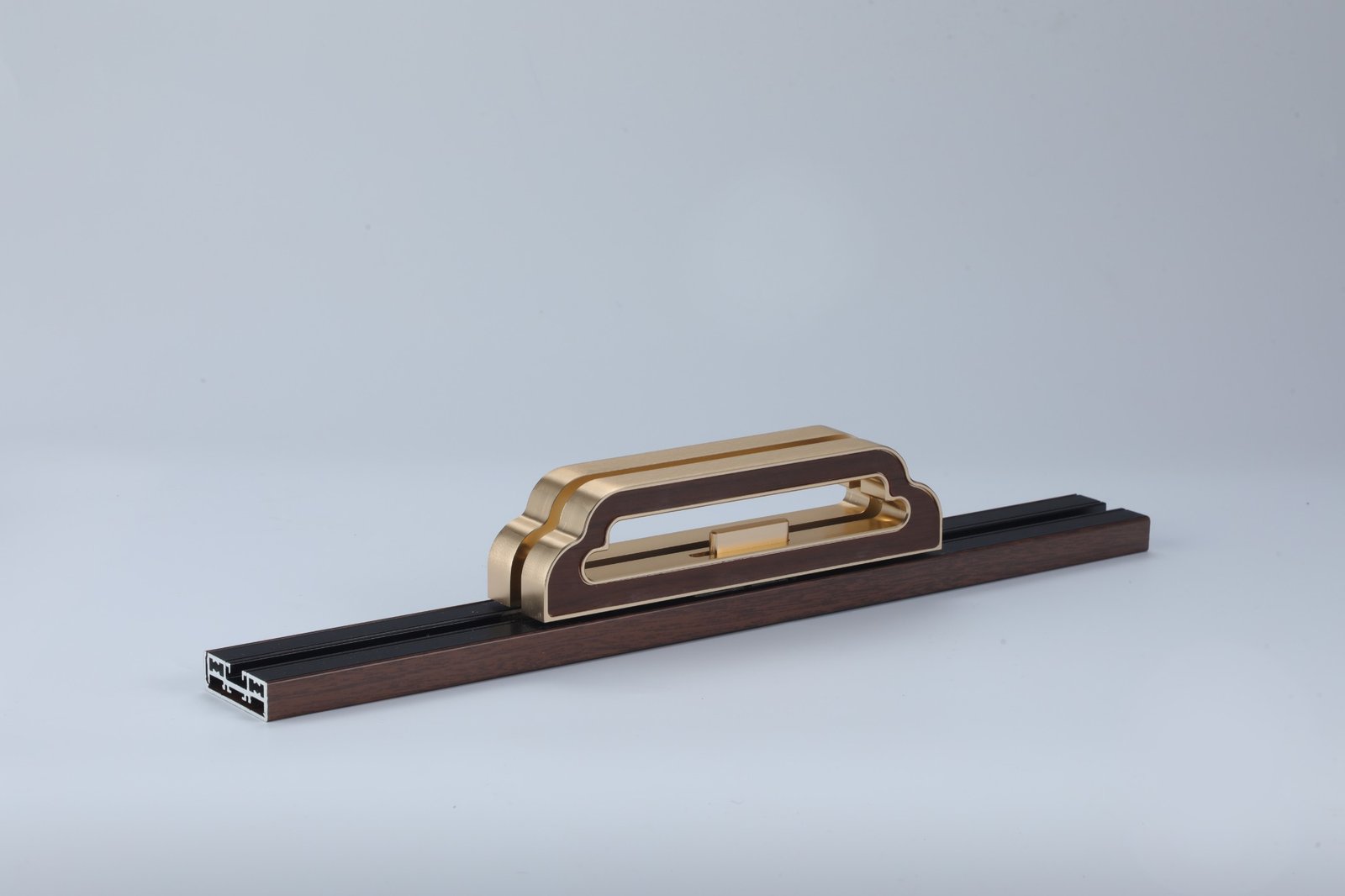

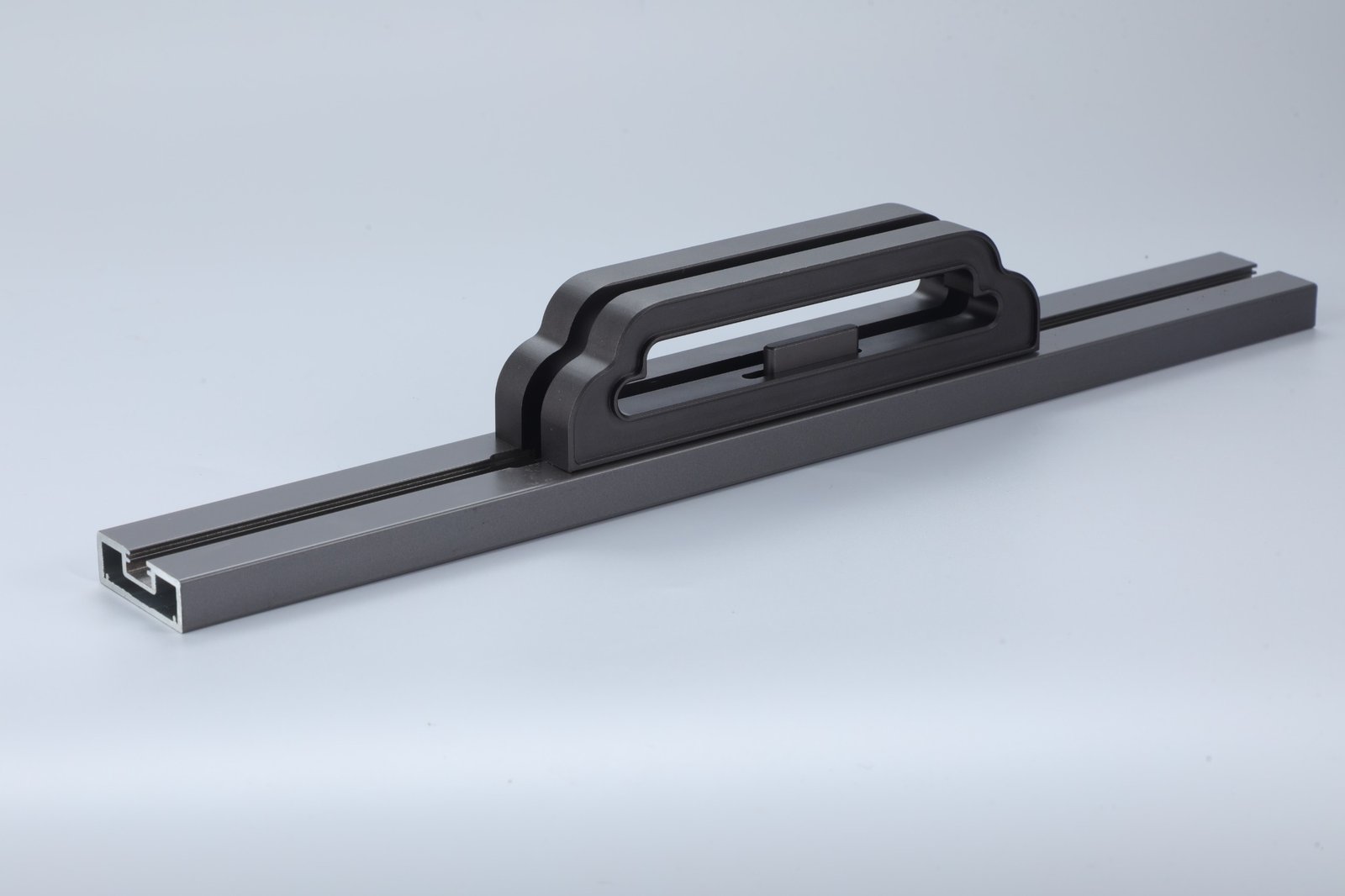

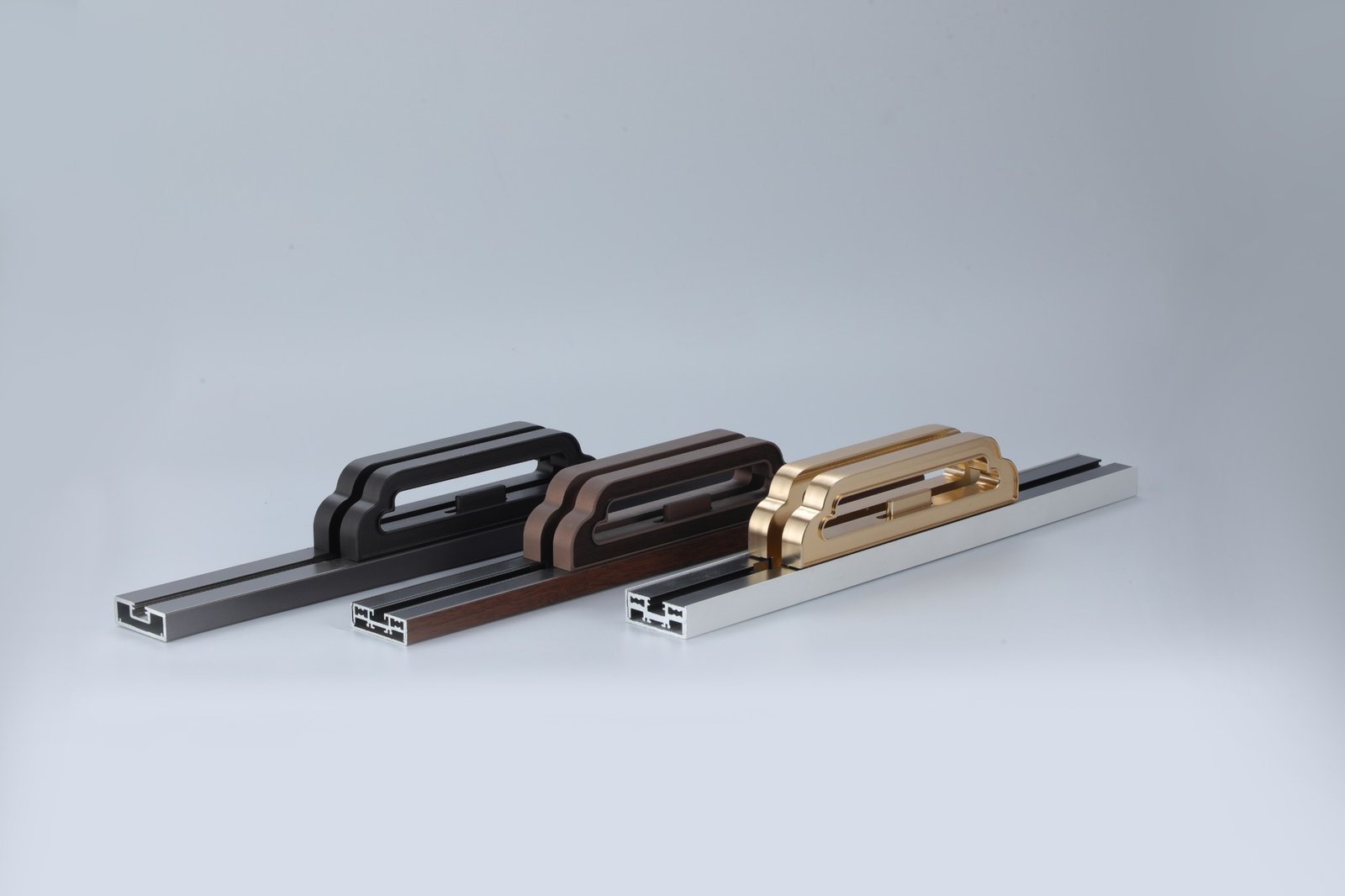

The components are manufactured from 6063 aluminium alloy extrusion using precision CNC machining, with an anodized surface finish. Black, silver, gray and gold colours are available, with brushed finishes and custom colours on request. An optional wood-grain sticker is available. Confirm the required finish, sticker option and connector before ordering.
| Material | 6063 aluminium alloy extrusion |
|---|---|
| Manufacturing Process | Precision CNC machining |
| Surface Finish | Anodized finish |
| Minimum Order Quantity | 300 locks per model. Mixed colours are accepted within the same model. |
| Bulk Order Lead Time | 15–20 days. |
| Samples | Free samples are available. Shipping costs are paid by the customer. |
| OEM / ODM | Custom colours, laser logo, packaging and profile compatibility support. Contact us to discuss your requirements. |
