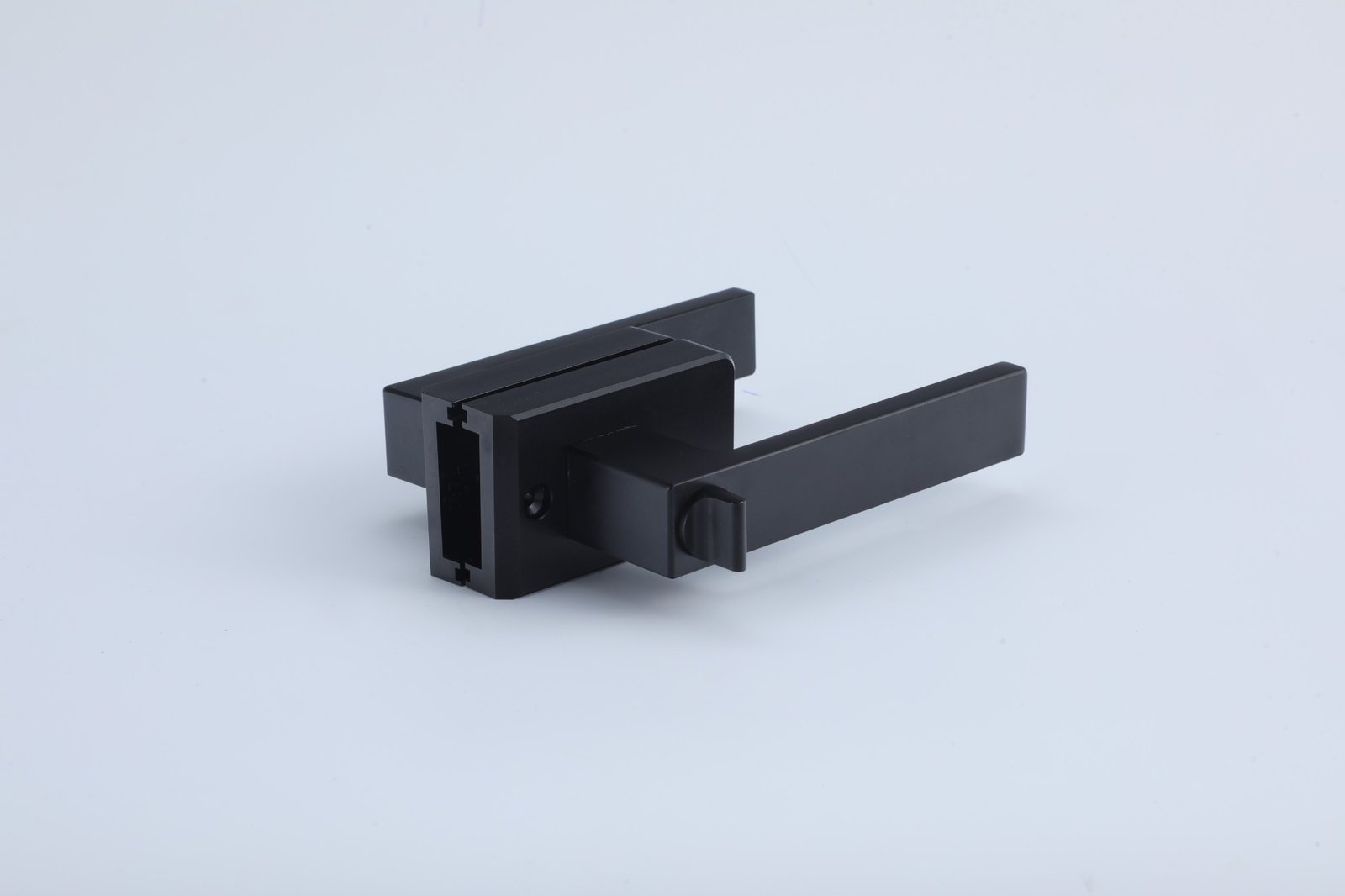

342A Ultra-Slim Swing Door Lock – Single Glazing
CNC-machined aluminium swing door lock for single-glazed ultra-slim profile systems. Keyed configurations and magnetic or silent lock options are available, with the cylinder selected to suit the actual door profile.
342A is an ultra-slim aluminium swing door lock for single-glazed profile systems. The panel and handles are manufactured from 6063 aluminium alloy extrusion using precision CNC machining, with an anodized surface finish.
It suits 35 / 40 / 45 profile series with 16 or 18 mm profile specifications. Select a 48 mm lock cylinder for -16 profiles and a 50 mm lock cylinder for -18 profiles. Keyed configurations and magnetic or silent lock options are available.
Standard colour options include black, silver, moonlight gray, gold and white. Custom colours are available on request. Confirm the actual door profile and glass preparation before ordering.
| Application | Ultra-slim framed swing doors |
|---|---|
| Glazing | Single glazing |

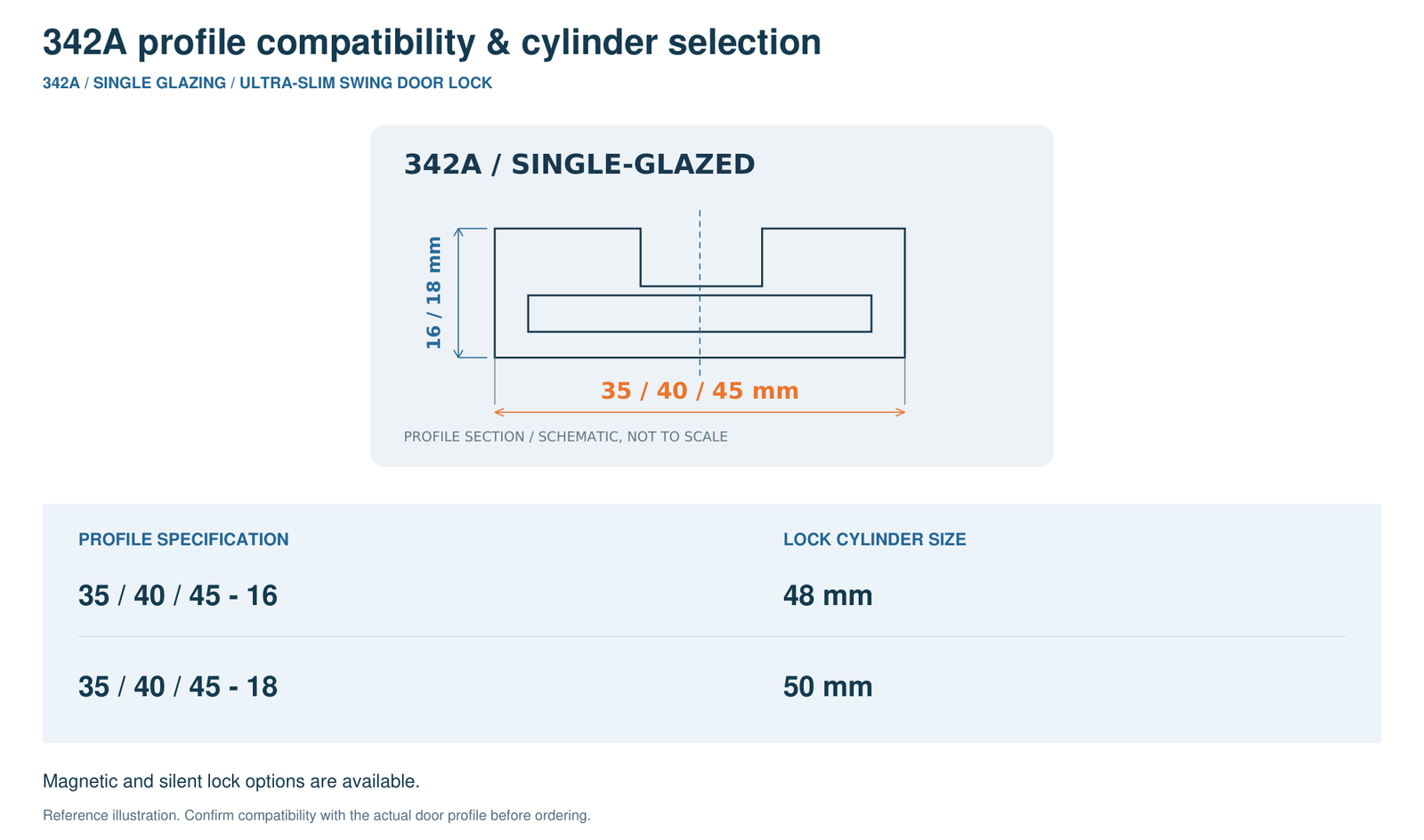

| Profile Compatibility | 35 / 40 / 45 profile series with 16 or 18 mm profile specifications. |
| Cylinder Selection | 35 / 40 / 45 – 16: 48 mm lock cylinder. 35 / 40 / 45 – 18: 50 mm lock cylinder. |

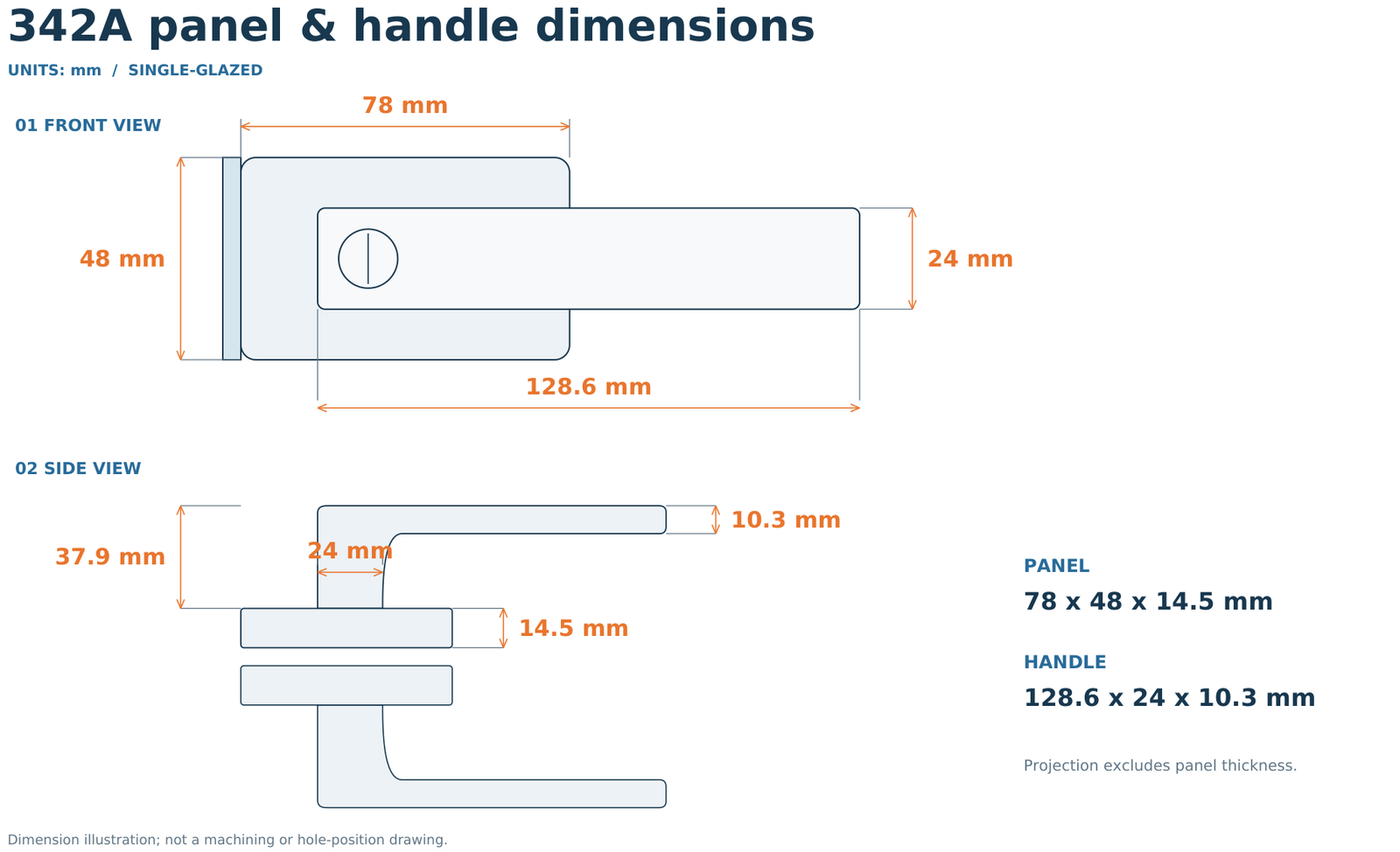

| Panel Dimensions | 78 x 48 x 14.5 mm |
| Handle Dimensions | 128.6 x 24 x 10.3 mm |
| Handle Projection | 37.9 mm, excluding panel thickness. |
| Lock Options | Keyed configurations available; magnetic or silent lock options. |
| Colour Options | Black / Silver / Moonlight Gray / Gold / White; custom colours available. |

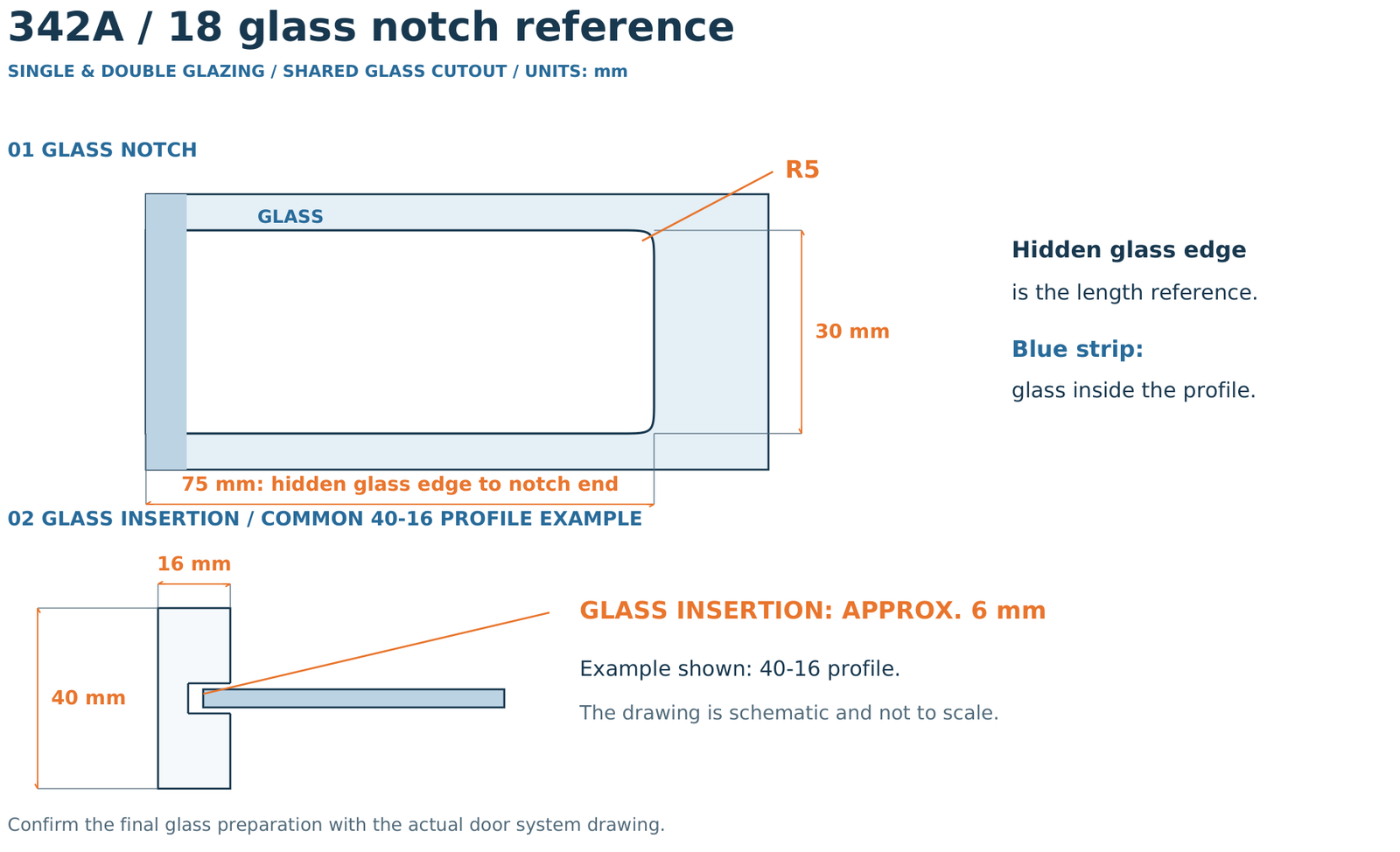

| Glass Preparation | Glass notch: 75 mm from the hidden glass edge to the notch end, 30 mm wide, R5 corners. Glass insertion: approximately 6 mm. Confirm the actual door system drawing before machining. |
| Material | 6063 aluminium alloy extrusion |
|---|---|
| Manufacturing Process | Precision CNC machining |
| Surface Finish | Anodized finish |
| Minimum Order Quantity | 300 locks per model. Mixed colours are accepted within the same model. |
| Bulk Order Lead Time | 15–20 days. |
| Samples | Free samples are available. Shipping costs are paid by the customer. |
| OEM / ODM | Custom colours, laser logo, packaging and profile compatibility support. Contact us to discuss your requirements. |
