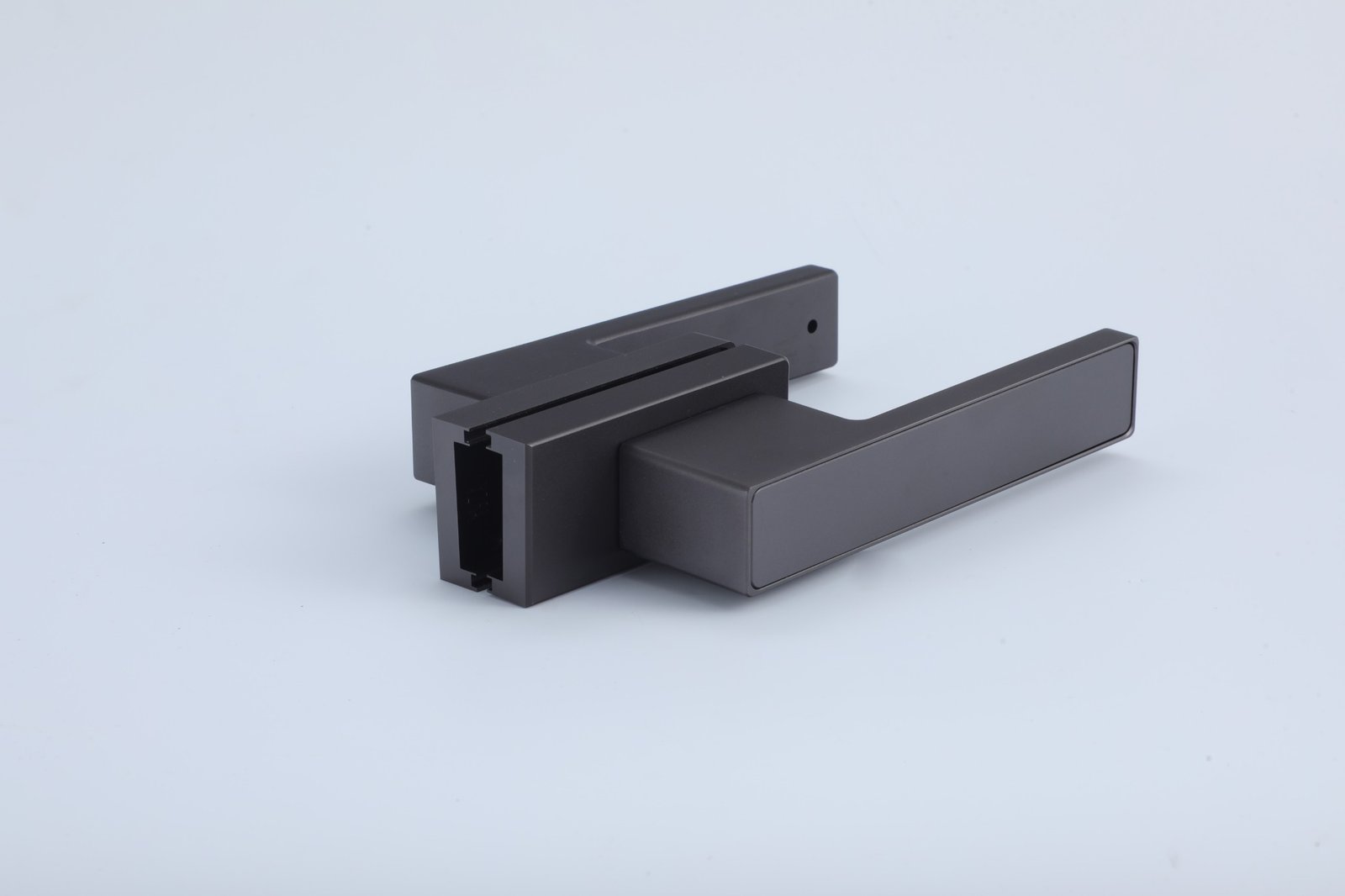

Y38 Ultra-Slim Swing Door Lock – Single Glazing
Aluminium swing door lock for single-glazed profile systems. Features a thicker Y38 panel, hidden inner switch and magnetic exterior cover, with keyed, magnetic or silent lock options.

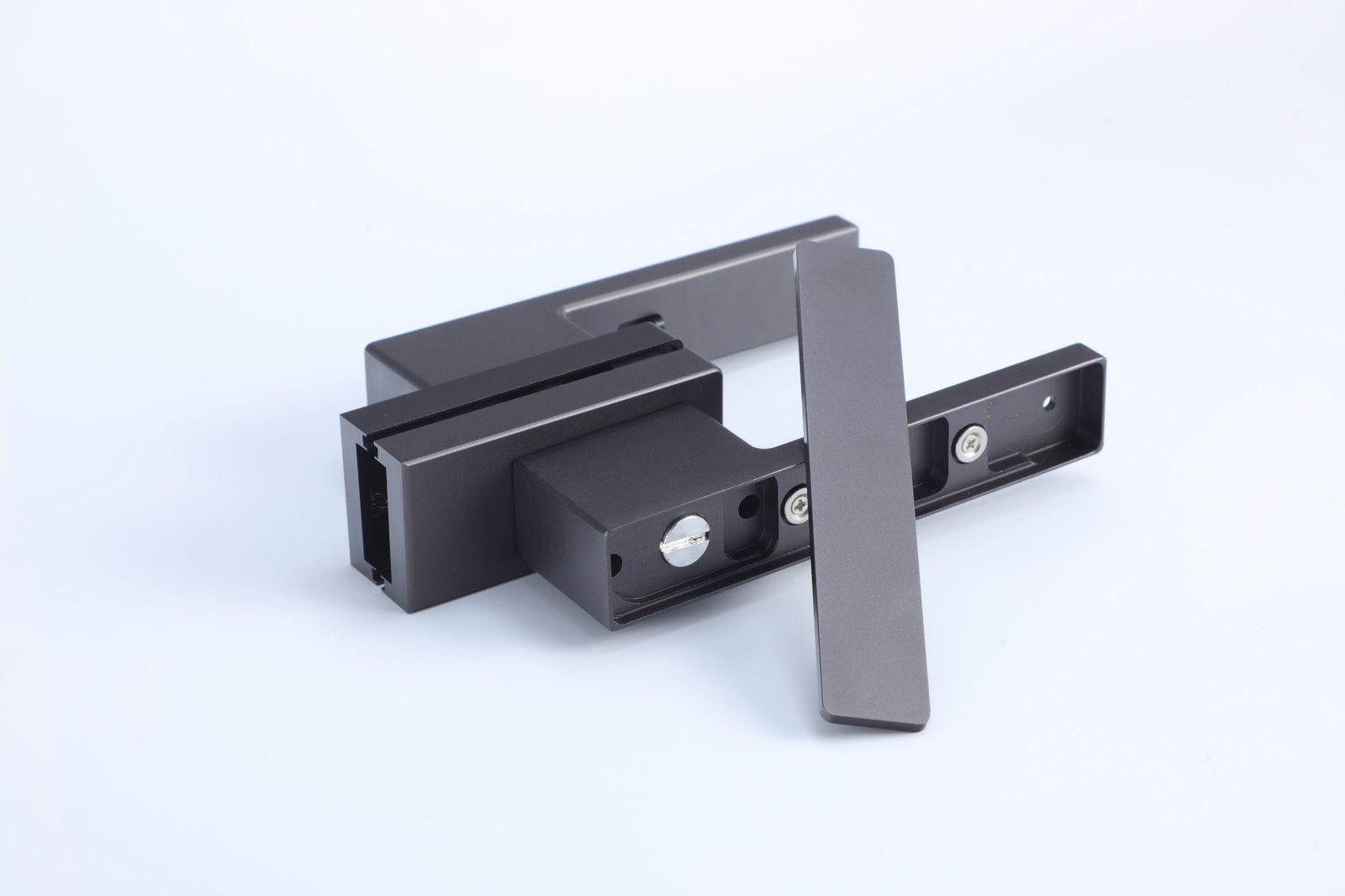

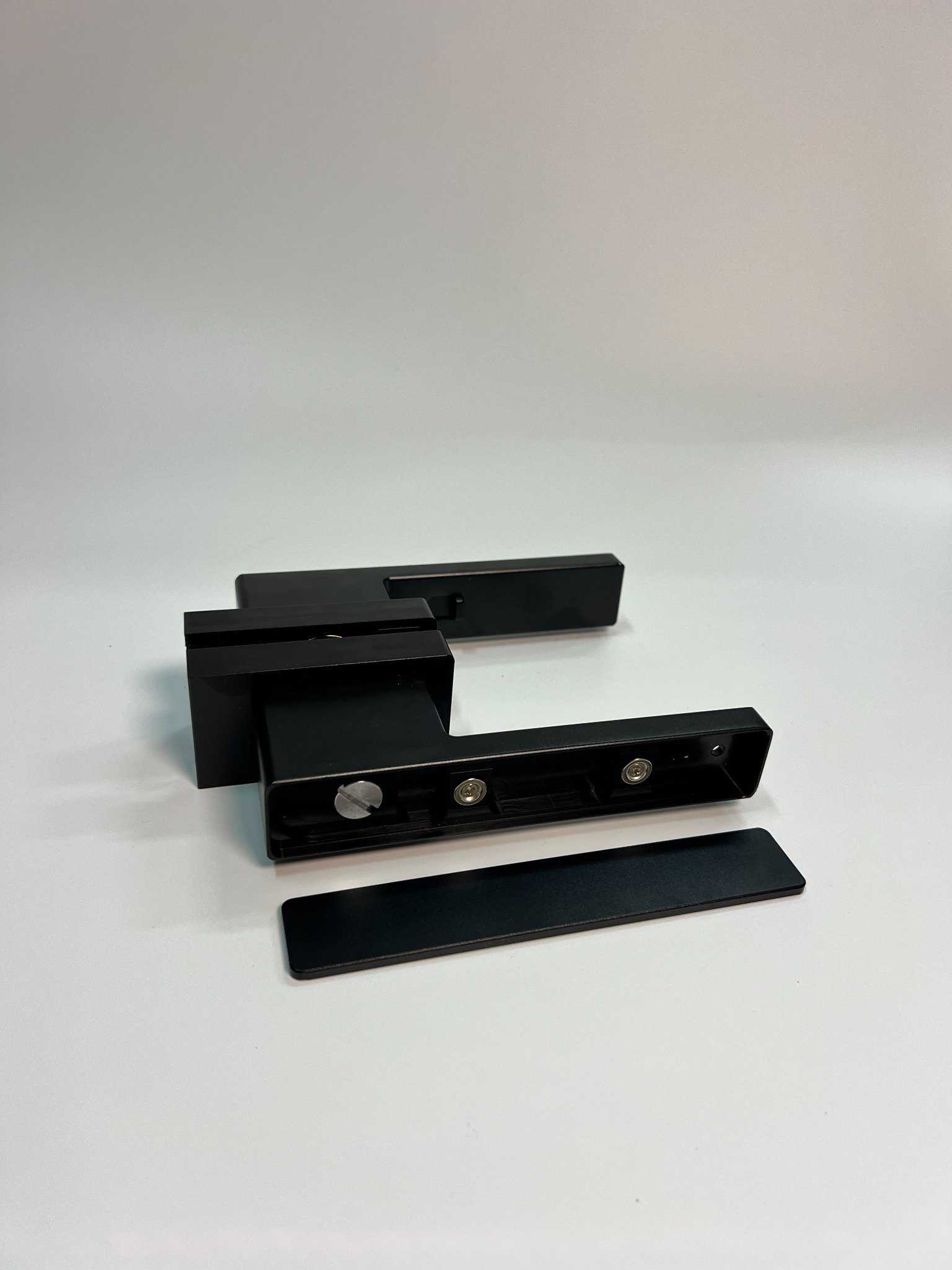

Y38 is an aluminium swing door lock for single-glazed profile systems. It features a thicker Y38 panel, a hidden inner locking switch and a magnetic exterior cover. Keyed configurations and magnetic or silent lock options are available.
The lock suits 35 / 40 / 45 profile series with 16 or 18 mm profile specifications. Select a 60 mm lock cylinder for -16 profiles and a 62 mm lock cylinder for -18 profiles. Confirm compatibility with the actual door profile before ordering.
Manufactured from 6063 aluminium alloy extrusion with precision CNC machining and an anodized finish. Custom colours, laser logos and packaging are available on request.
| Glazing | Single glazing |
|---|---|

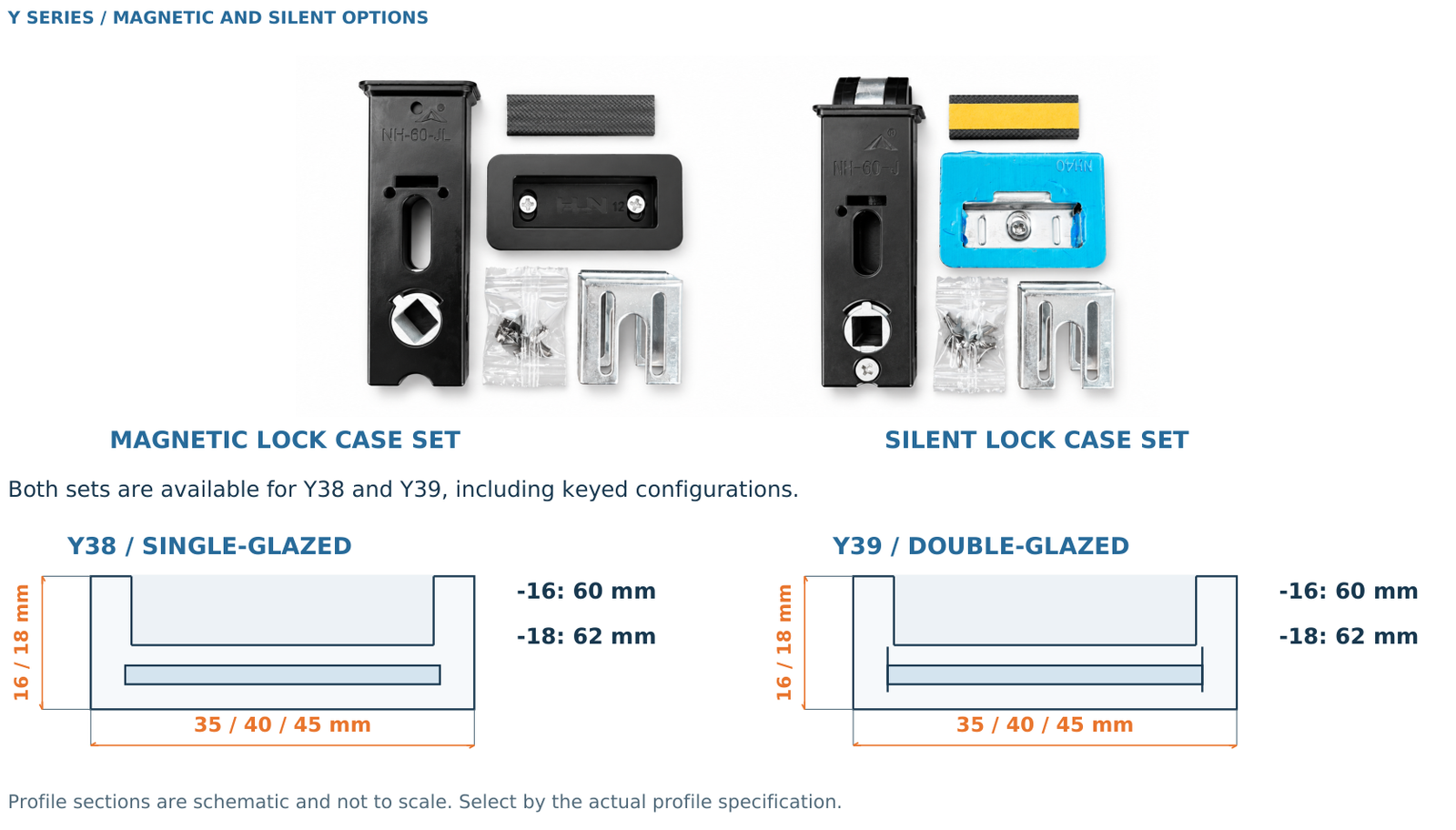

| Profile Compatibility | 35 / 40 / 45 profile series, with 16 or 18 mm profile specifications. -16: 60 mm lock cylinder; -18: 62 mm lock cylinder. |

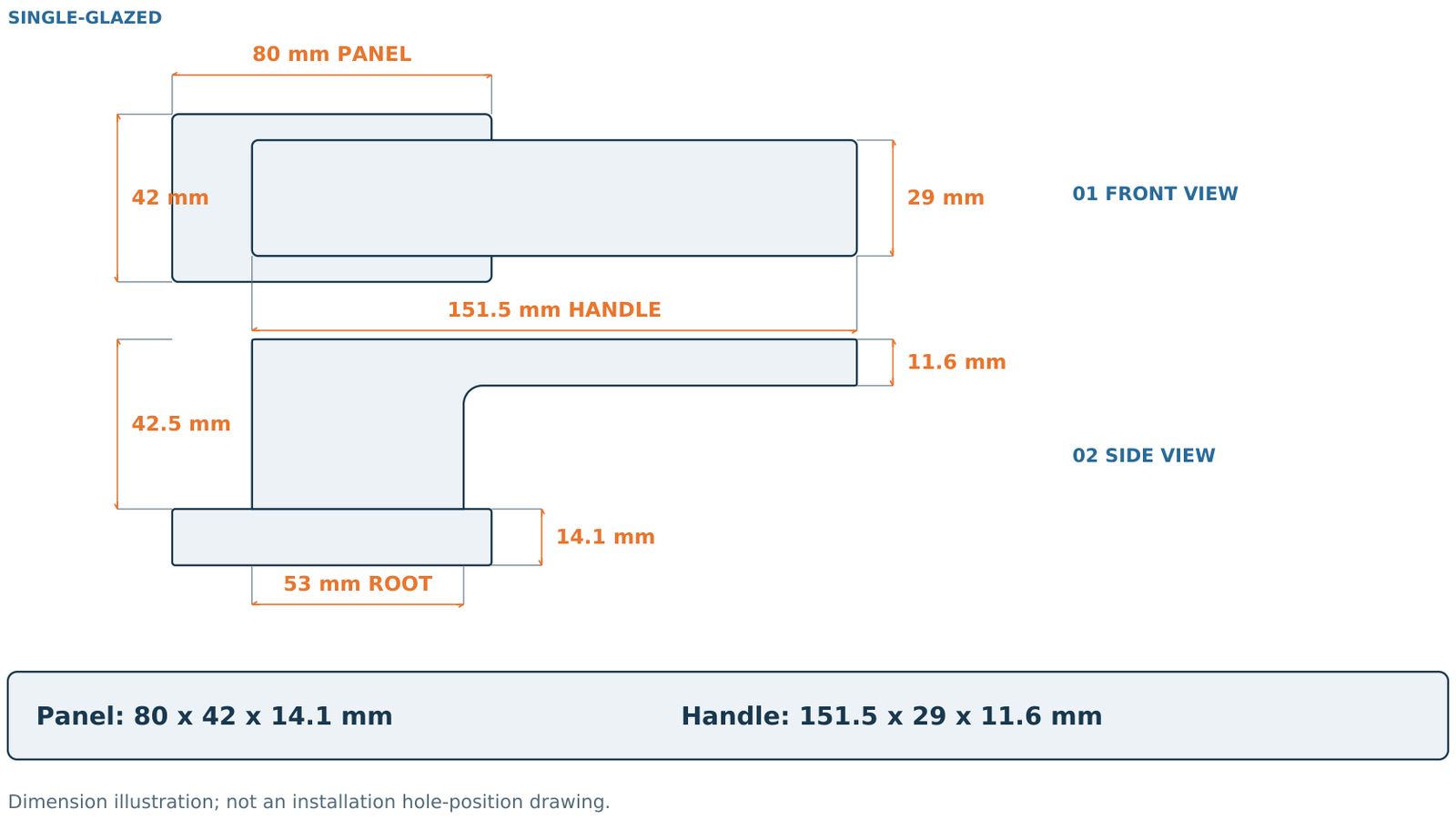

| Panel Dimensions | 80 x 42 x 14.1 mm |
| Handle Dimensions | 151.5 x 29 x 11.6 mm |
| Handle Root Width | 53 mm |
| Lock Options | Keyed configurations available; magnetic or silent lock options. |

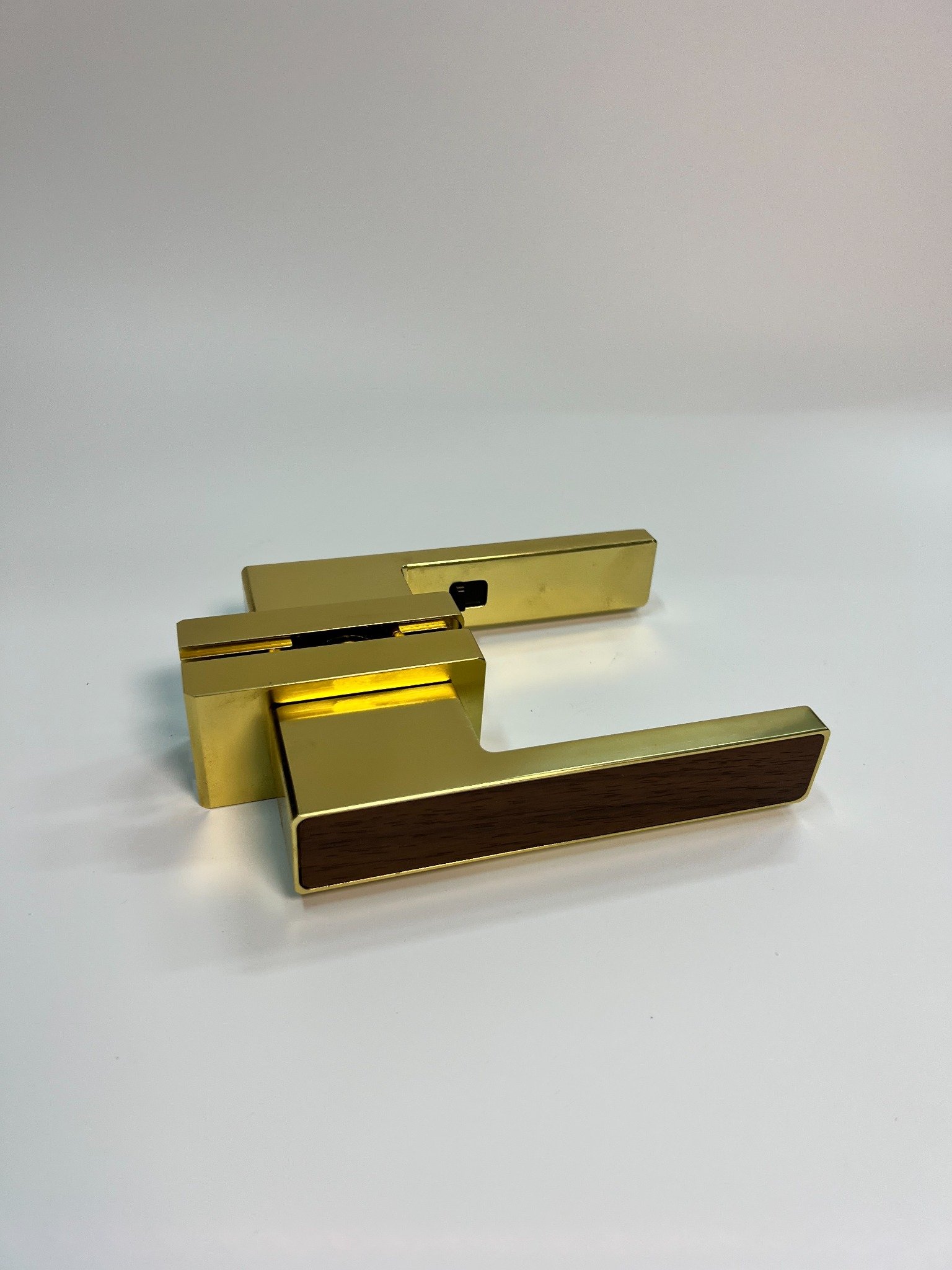

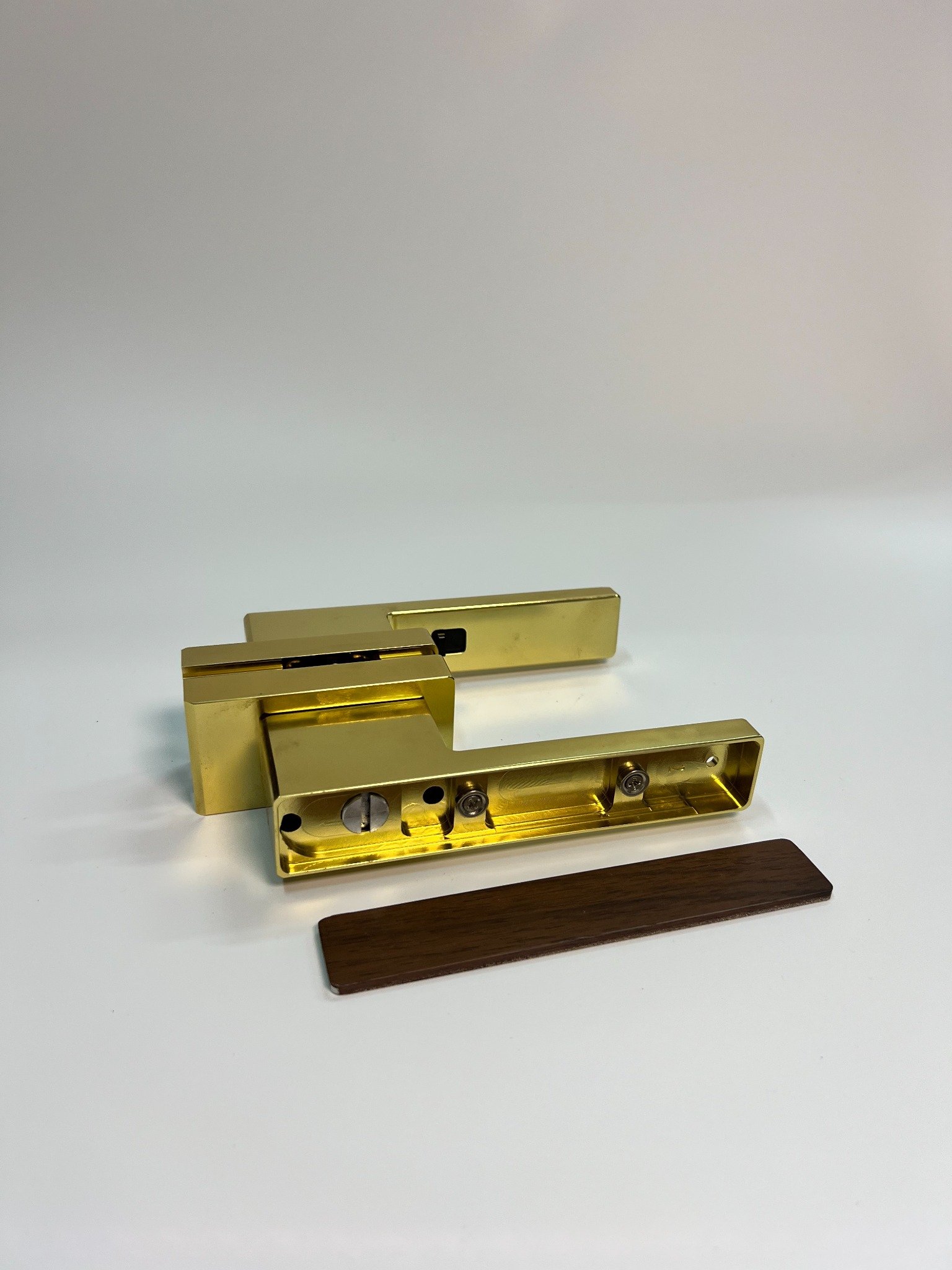

| Product Details | Hidden inner switch; magnetic outer cover; gold / wood-look detail shown in the catalogue. |

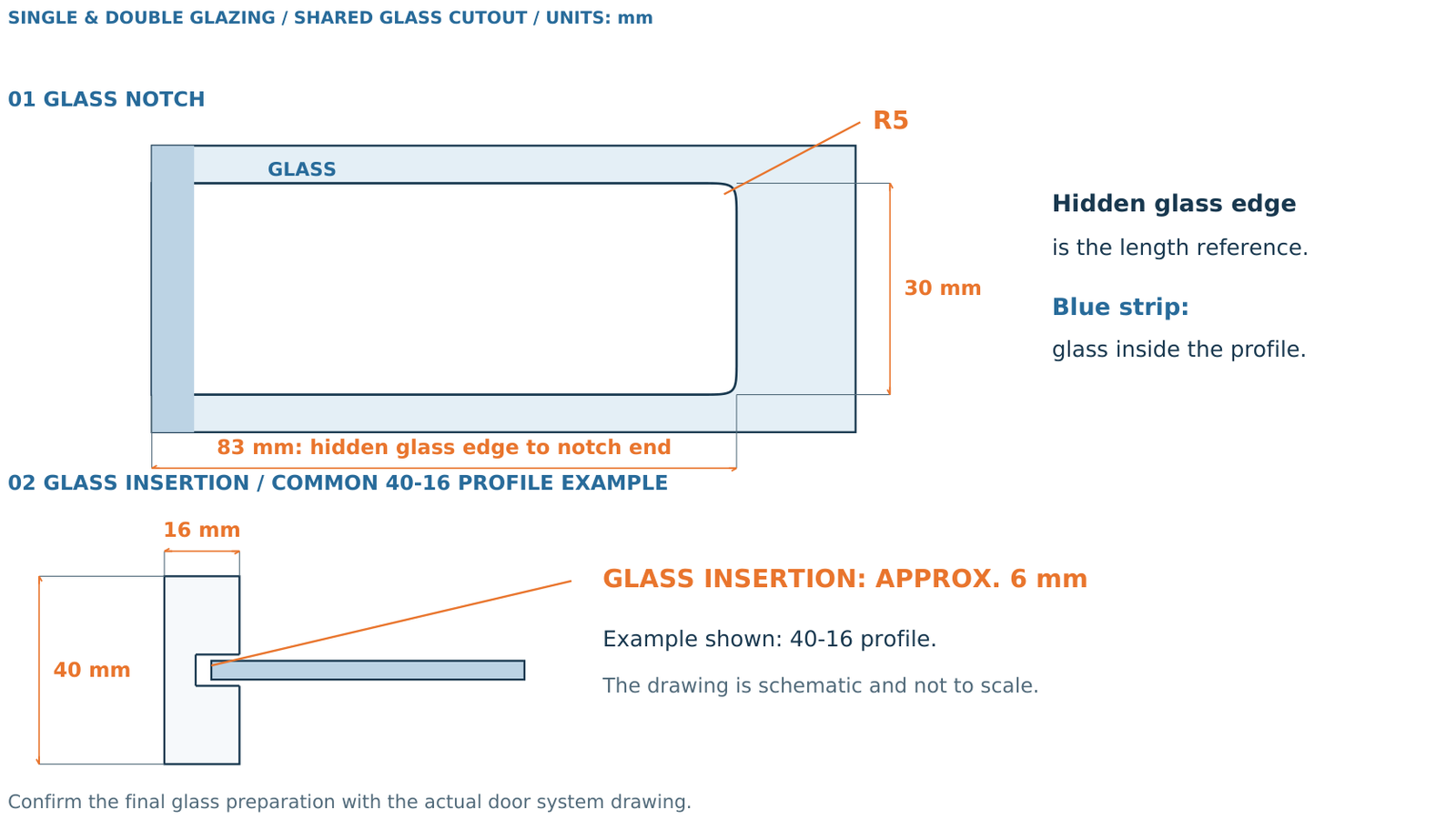

| Glass Preparation | Glass notch: 83 mm from the hidden glass edge to the notch end, 30 mm wide, R5 corners. Glass insertion: approximately 6 mm. Follow the reference drawing and the actual door system. |

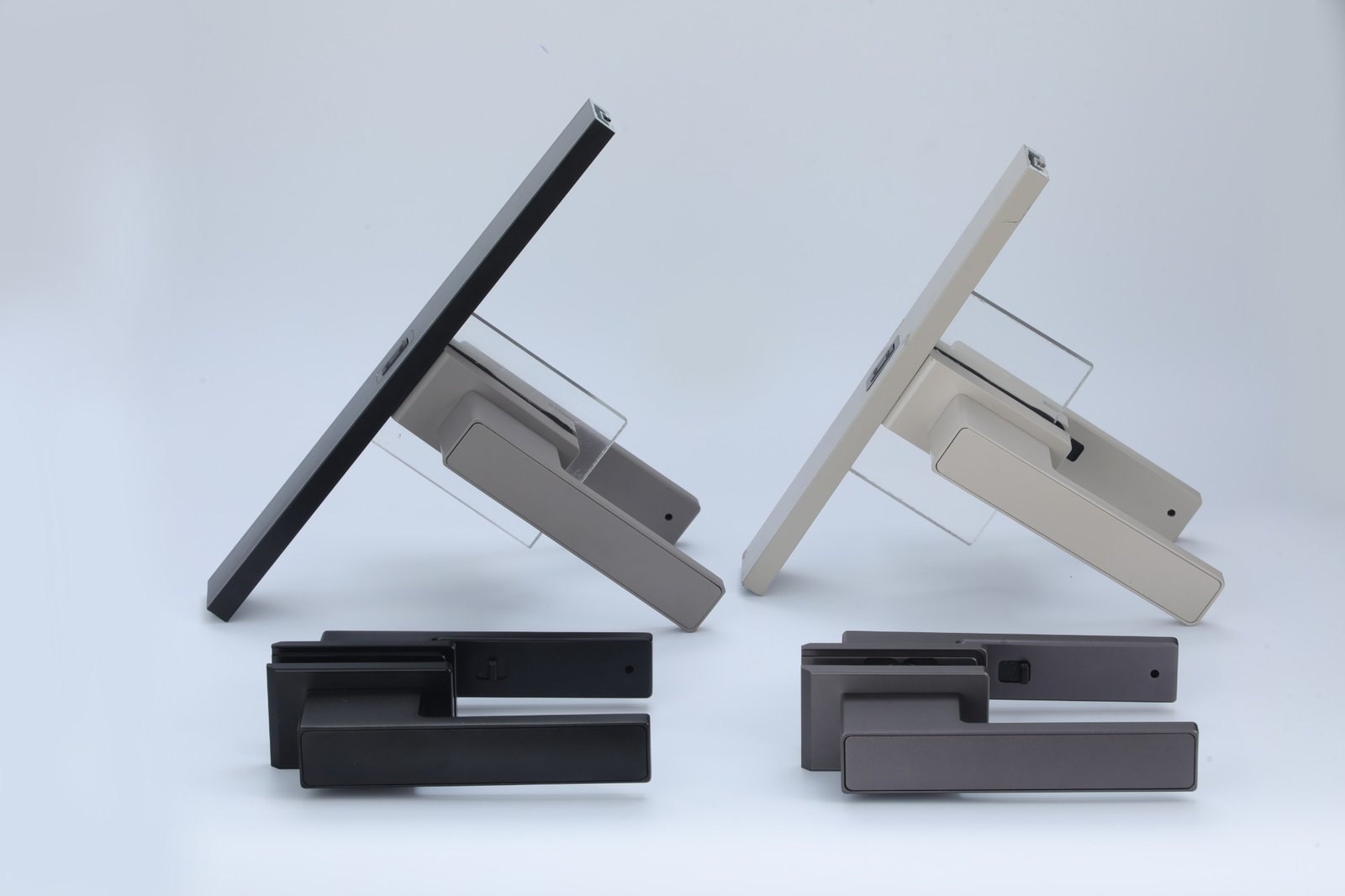

| Colour Options | Black / Silver / Moonlight Gray / Gold / White; custom colours available. |
| Material | 6063 aluminium alloy extrusion |
|---|---|
| Manufacturing Process | Precision CNC machining |
| Surface Finish | Anodized finish |
| Minimum Order Quantity | 300 locks per model. Mixed colours are accepted within the same model. |
| Bulk Order Lead Time | 15–20 days. |
| Samples | Free samples are available. Shipping costs are paid by the customer. |
| OEM / ODM | Custom colours, laser logo, packaging and profile compatibility support. Contact us to discuss your requirements. |
