B01 Ultra-Slim Swing Door Lock – Single & Double Glazing
One aluminium lock model for both single- and double-glazed profile systems. Choose the cylinder size to suit your profile, with keyed, magnetic or silent lock options.

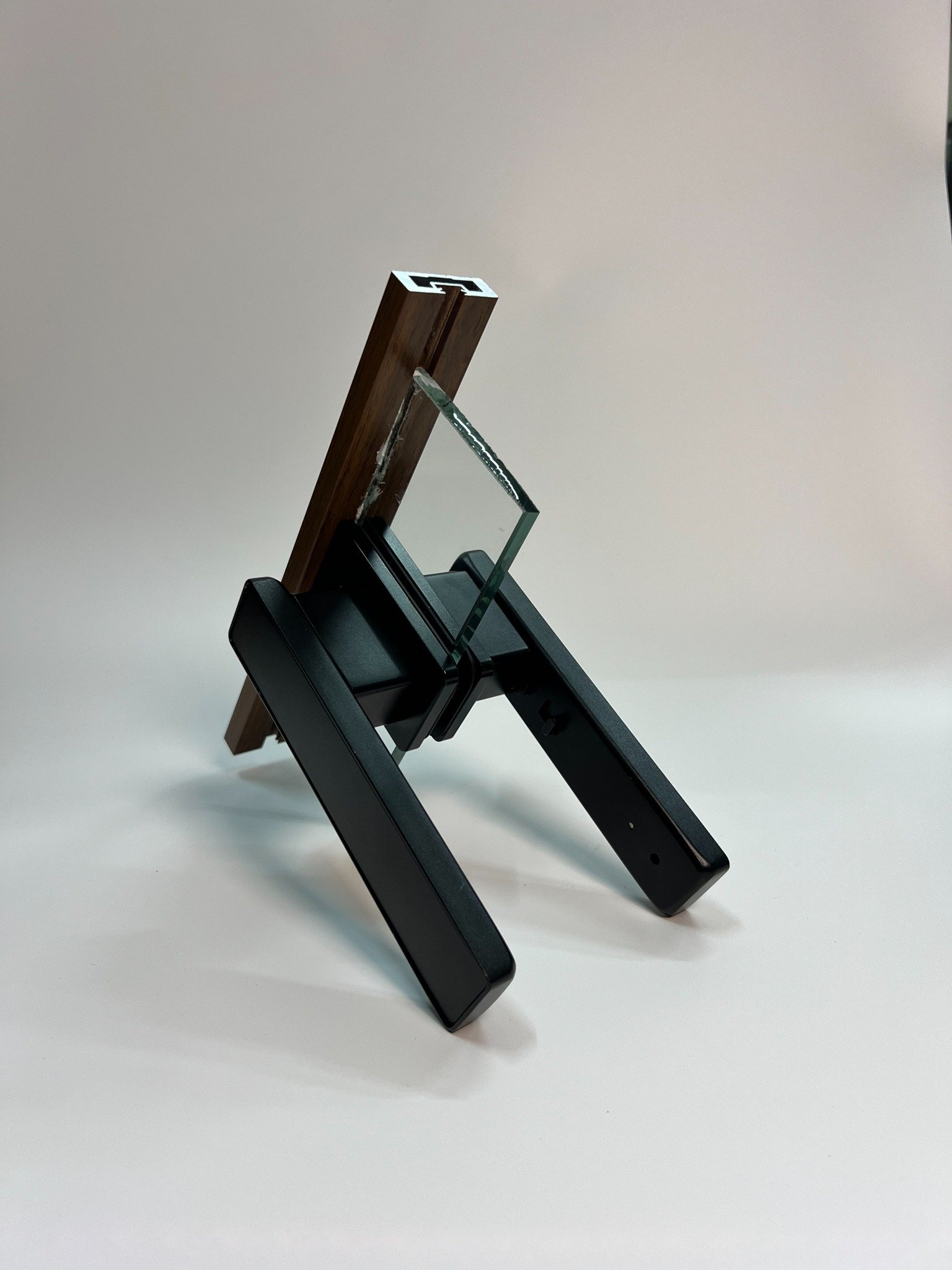

B01 is an ultra-slim aluminium swing door lock for both single- and double-glazed profile systems. One model supports both glazing systems, with the lock cylinder selected to suit the actual profile.

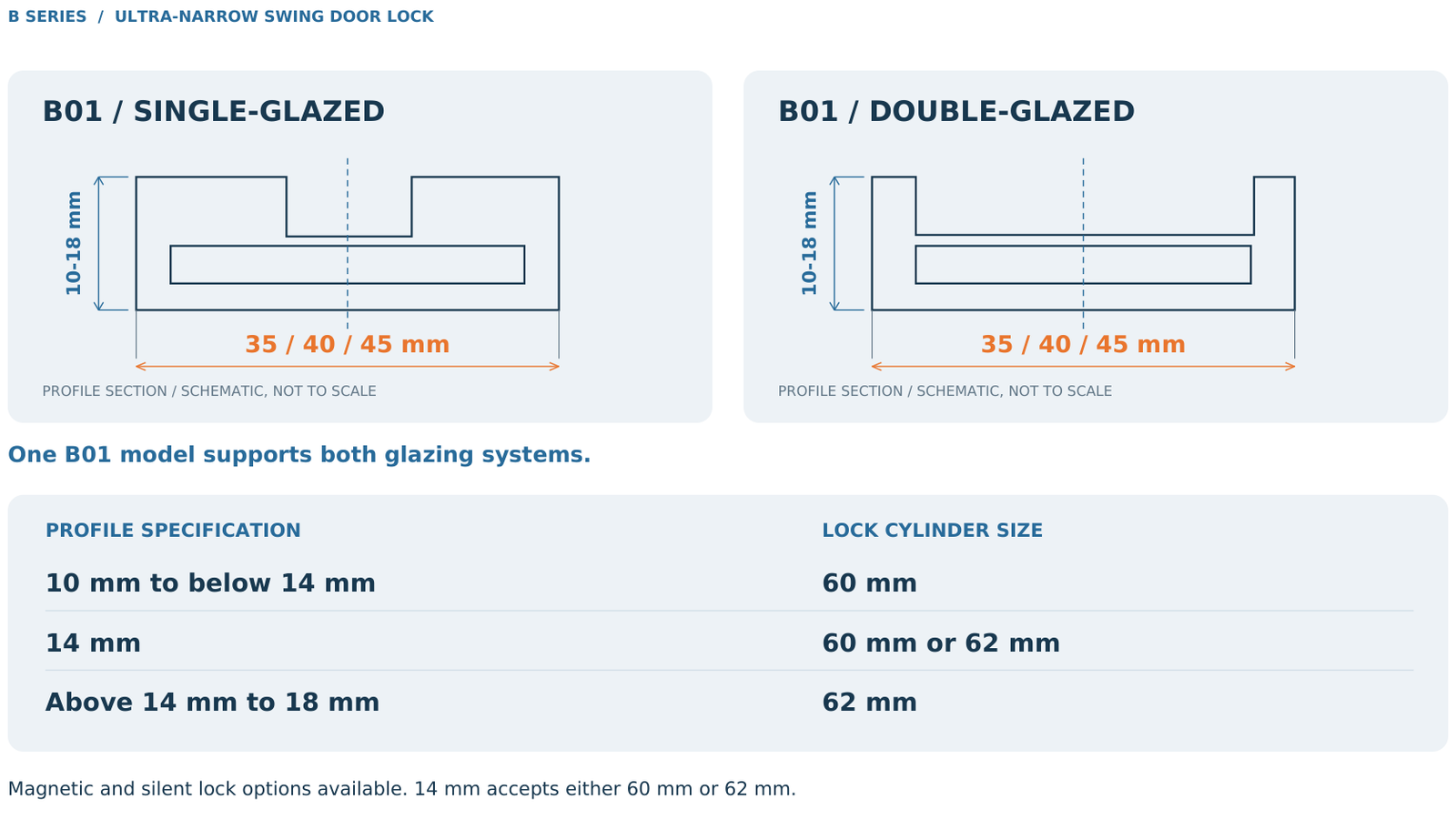

It suits 35 / 40 / 45 profile series with 10–18 mm profile specifications. Use a 60 mm lock cylinder for profiles from 10 mm to below 14 mm. At 14 mm, either a 60 mm or 62 mm cylinder can be selected. For profiles above 14 mm up to 18 mm, use a 62 mm cylinder.

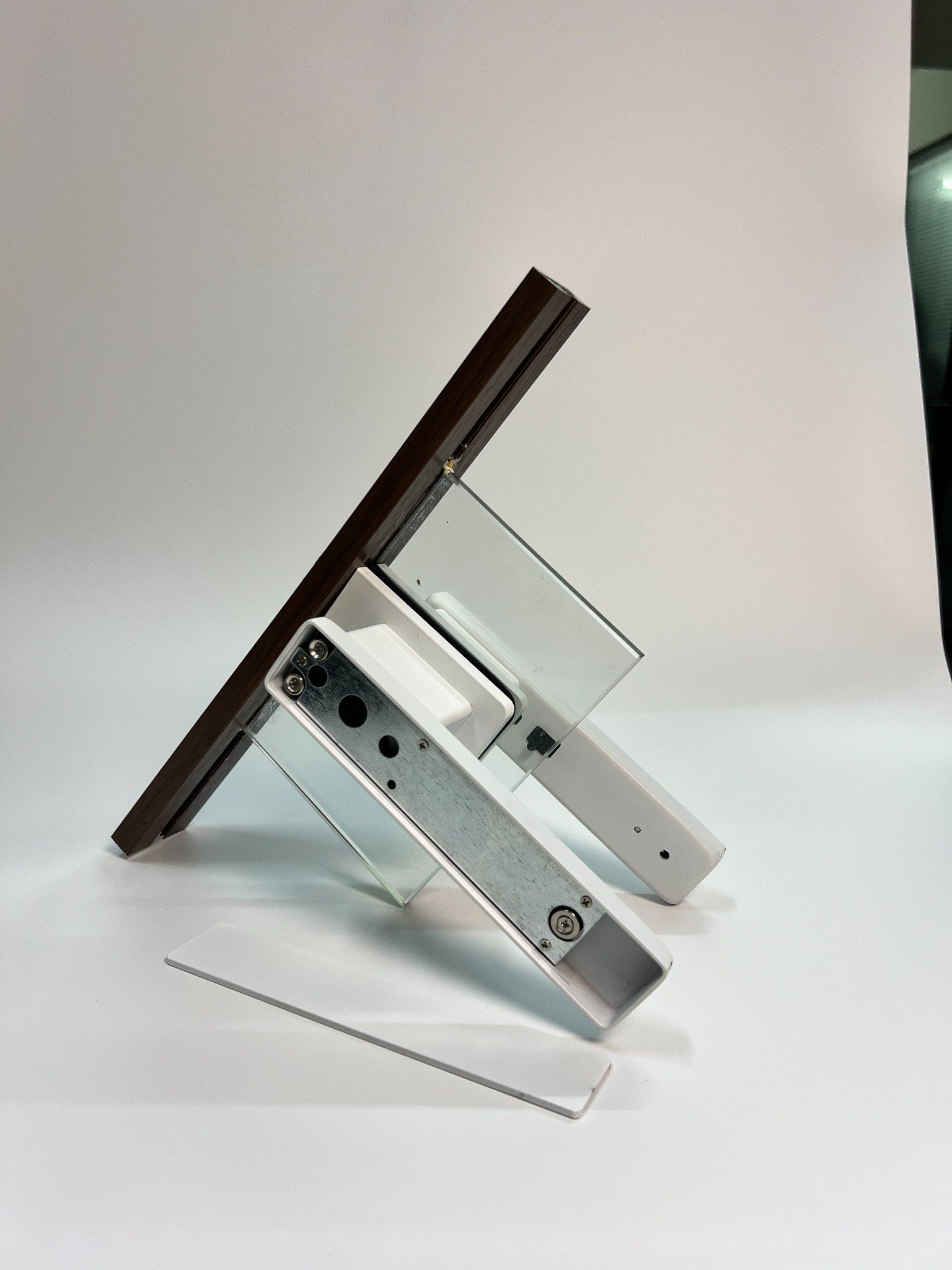

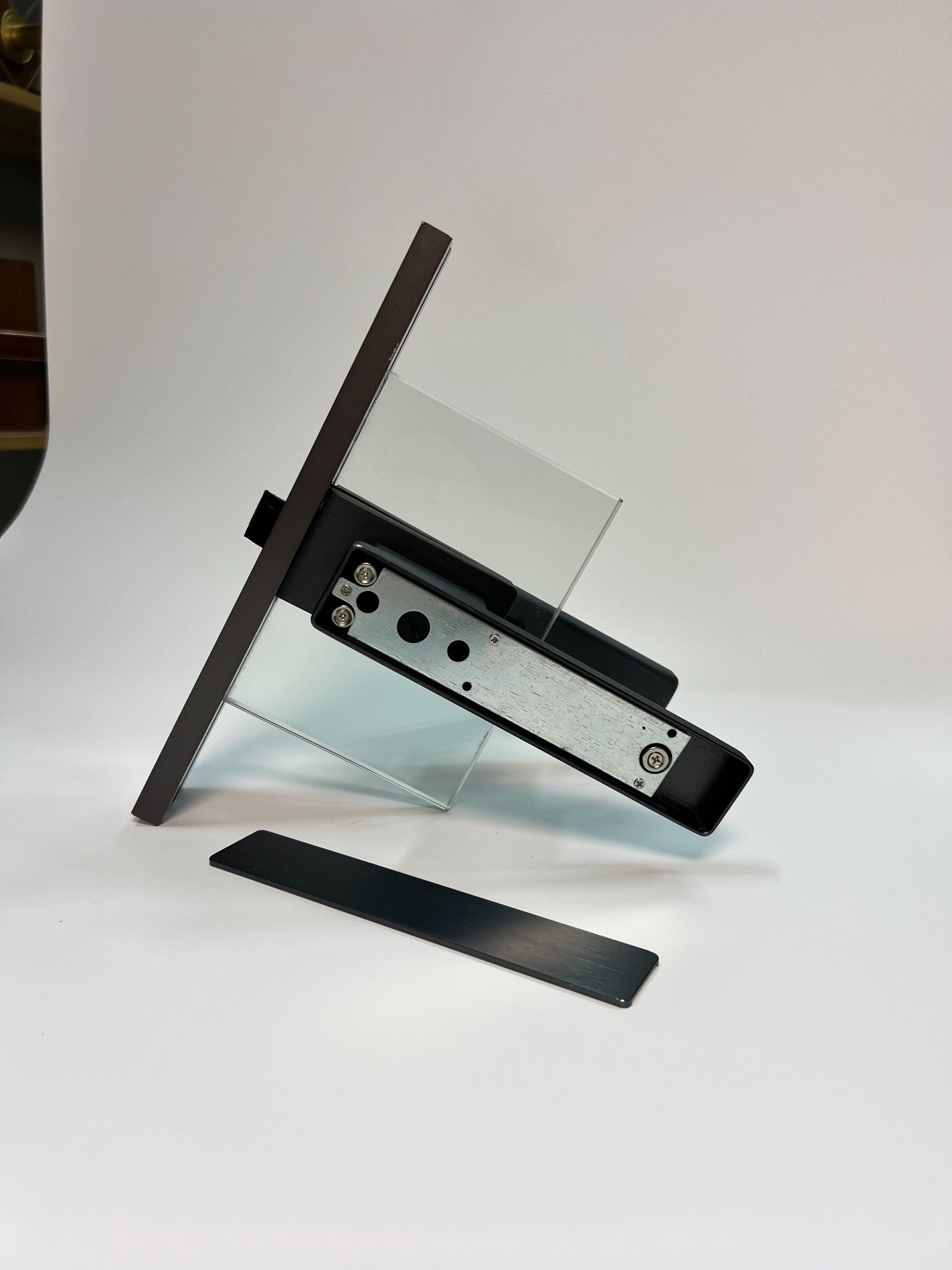

The lock features an interior locking switch and a removable exterior cover. Keyed configurations and magnetic or silent lock options are available. Manufactured from 6063 aluminium alloy extrusion with precision CNC machining and an anodized finish.
| Glazing | Single and double glazing |
|---|---|
| Profile Compatibility | 35 / 40 / 45 profile series, with 10–18 mm profile specifications. |
| Cylinder Selection | 10 mm to below 14 mm: 60 mm. At 14 mm: 60 mm or 62 mm. Above 14 mm to 18 mm: 62 mm. |

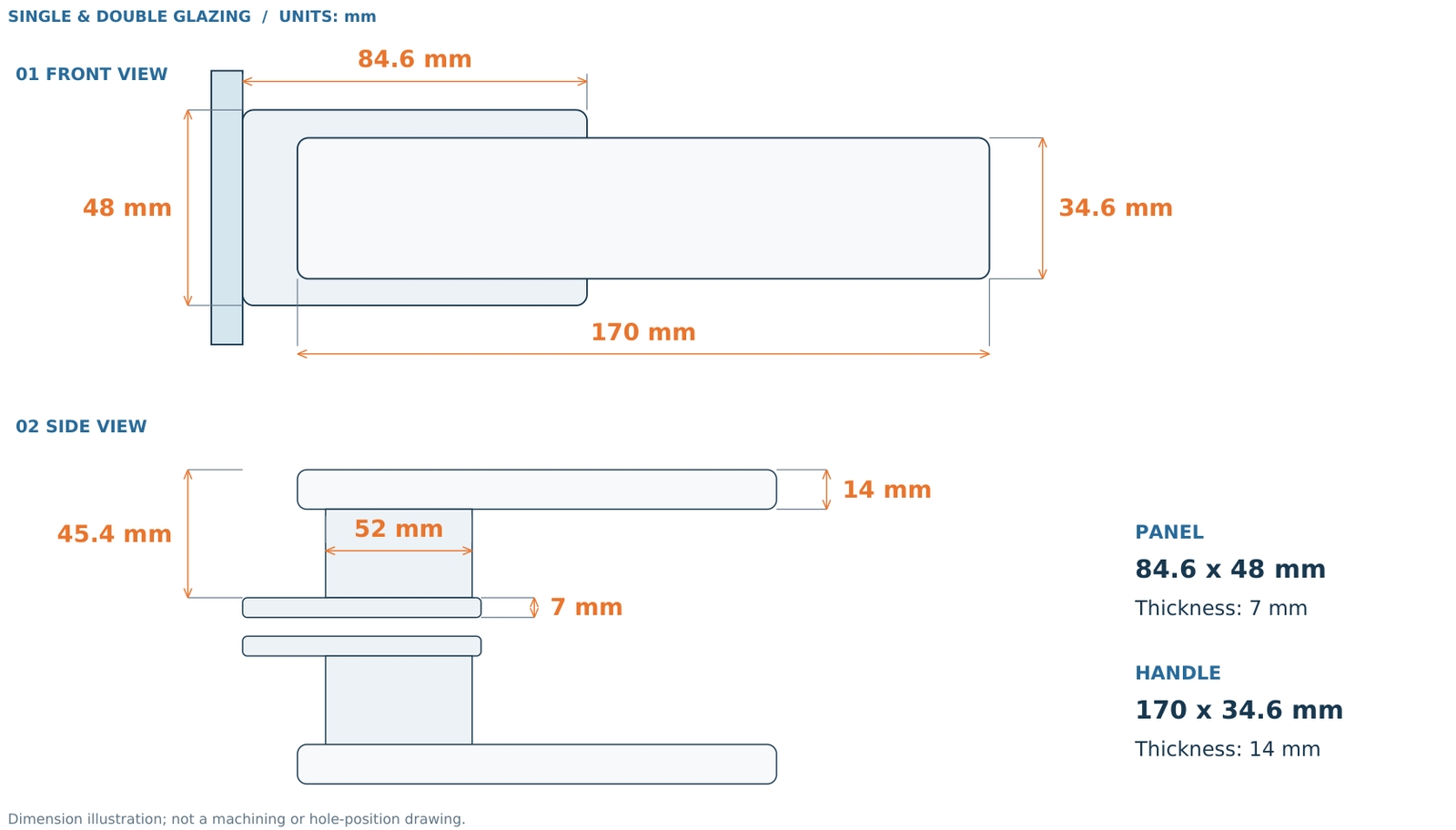

| Panel Dimensions | 84.6 x 48 x 7 mm |
| Handle Dimensions | 170 x 34.6 x 14 mm |
| Lock Options | Keyed configurations available; magnetic or silent lock options. |
| Colour Options | Black / Silver / Moonlight Gray / Gold / White; custom colours available. |
| Product Details | Interior locking switch; removable exterior cover. |

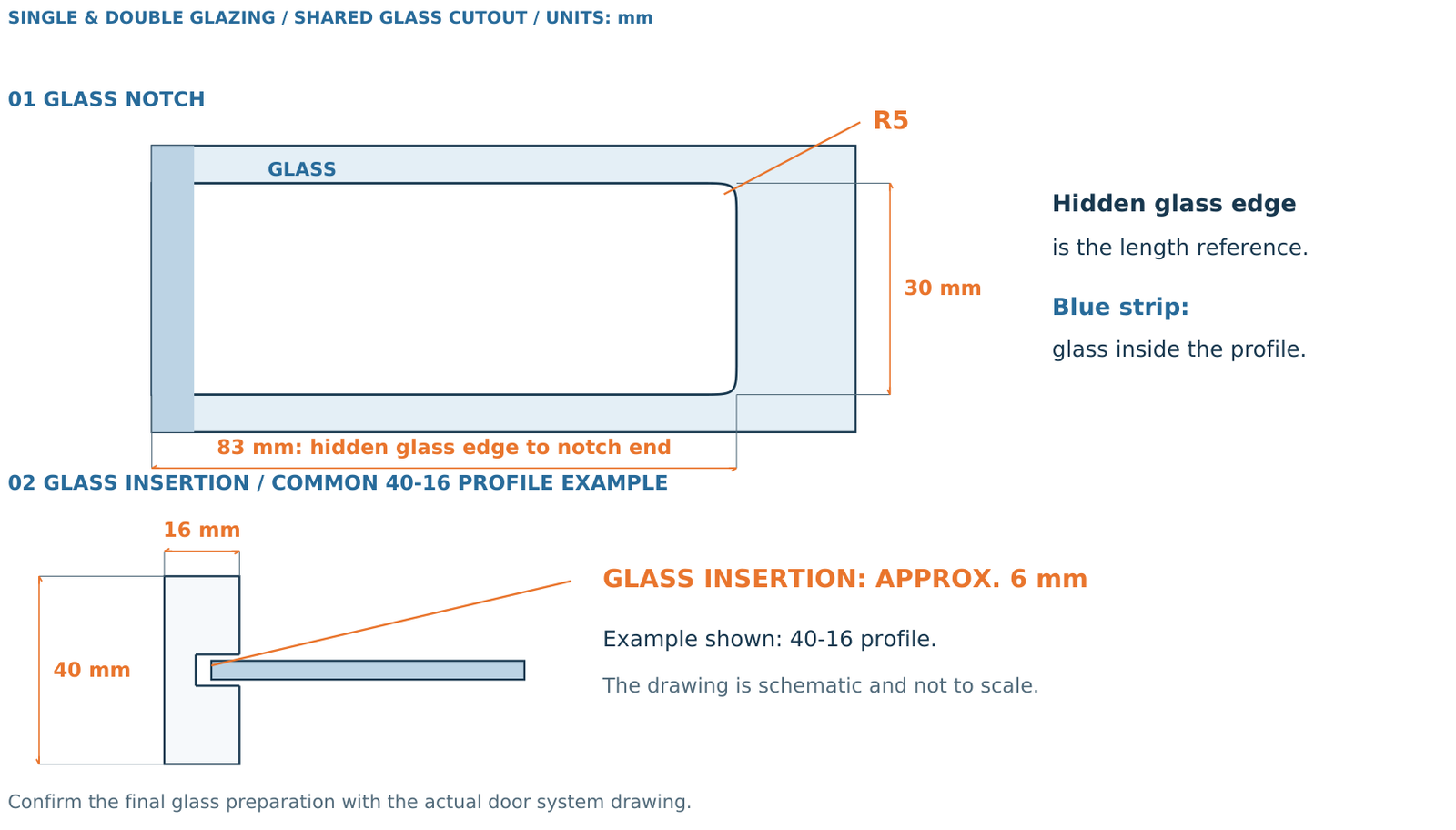

| Glass Preparation | Glass notch: 83 mm from the hidden glass edge to the notch end, 30 mm wide, R5 corners. Glass insertion: approximately 6 mm. Follow the reference drawing and the actual door system. |
| Material | 6063 aluminium alloy extrusion |
|---|---|
| Manufacturing Process | Precision CNC machining |
| Surface Finish | Anodized finish |
| Minimum Order Quantity | 300 locks per model. Mixed colours are accepted within the same model. |
| Bulk Order Lead Time | 15–20 days. |
| Samples | Free samples are available. Shipping costs are paid by the customer. |
| OEM / ODM | Custom colours, laser logo, packaging and profile compatibility support. Contact us to discuss your requirements. |
